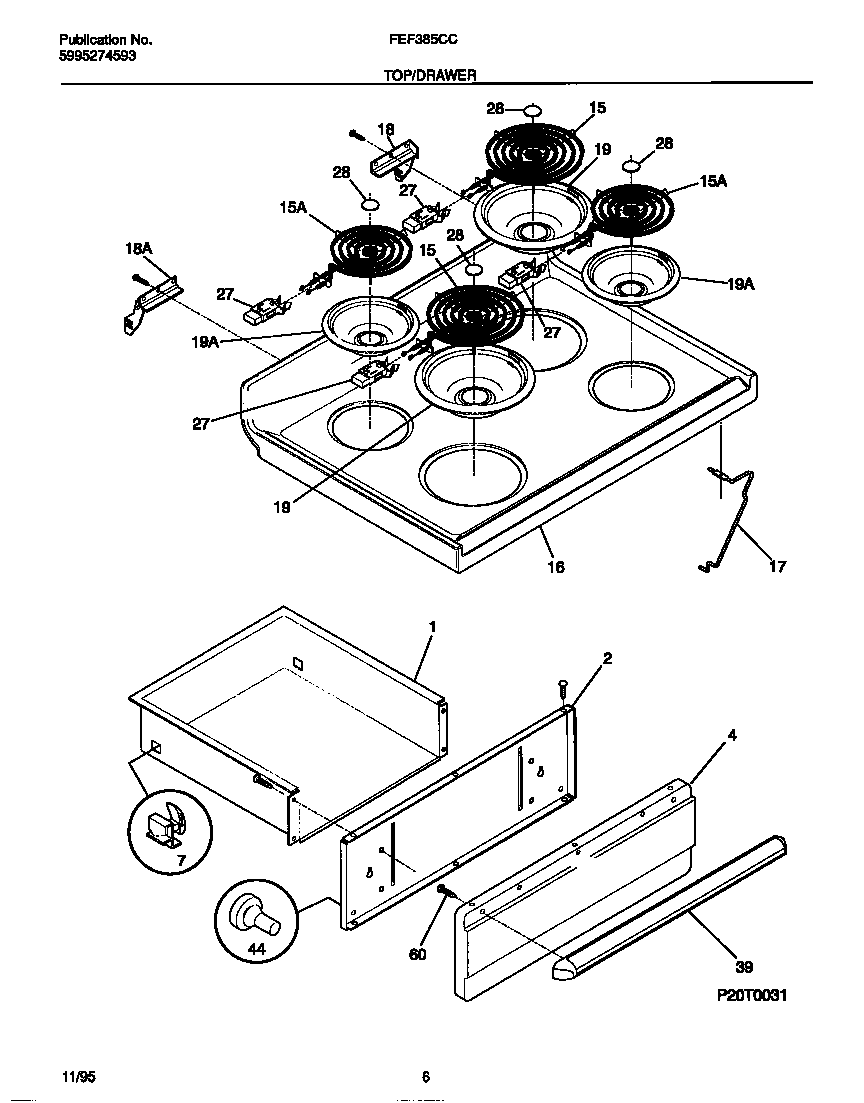

FEF385CCSD 04 – TOP/DRAWER

Products

PositionProduct
*13007RIVET-POP, WARING-PLATE
*13011131243700 Frigidaire Screw
*13009WCI 5303288574
*13010WCI 5303281584
*13008WCI 316001725
1DRAWER-UTILITY
2SHIELD-PNL
4PANEL-BROILER, WHITE
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19WCI 316048411
19WCI 316048408
275303935058 Frigidaire Oven Burner Receptacle Kit
28WCI 5303296595
285303017715 Frigidaire Medallion
39WCI 316026103
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
