FEF385CCTA 05 – DOOR

FEF385CCTA 05 – DOOR

Written by

in

FEF385CCTA 05 – DOOR

Products

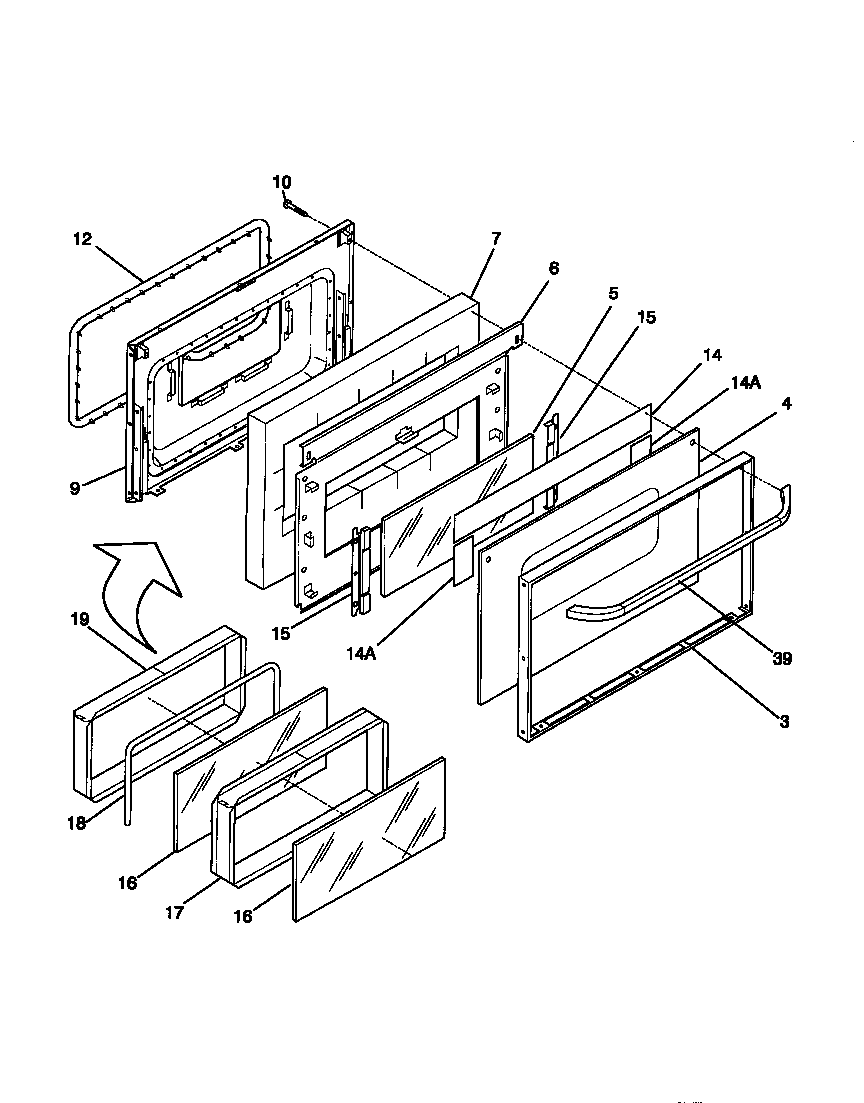

PositionProduct
*67851SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*678525303300265 Frigidaire Oven Screw
*678555303285179 Frigidaire Oven Door Screw
*678535303271648 Frigidaire Oven Screw
*67850WCI 316065301
*67856131243700 Frigidaire Screw
*67854WCI 5303280311
3WCI 316067803
4WCI 316019712
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION, ALMOND
7WCI 316076400
9WCI 316066603
10SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
125303131601 Frigidaire Oven Seal
14ALUM FOIL-B/G GLASS
145303208655 Frigidaire Reflector Assembly
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
39WCI 316060204
