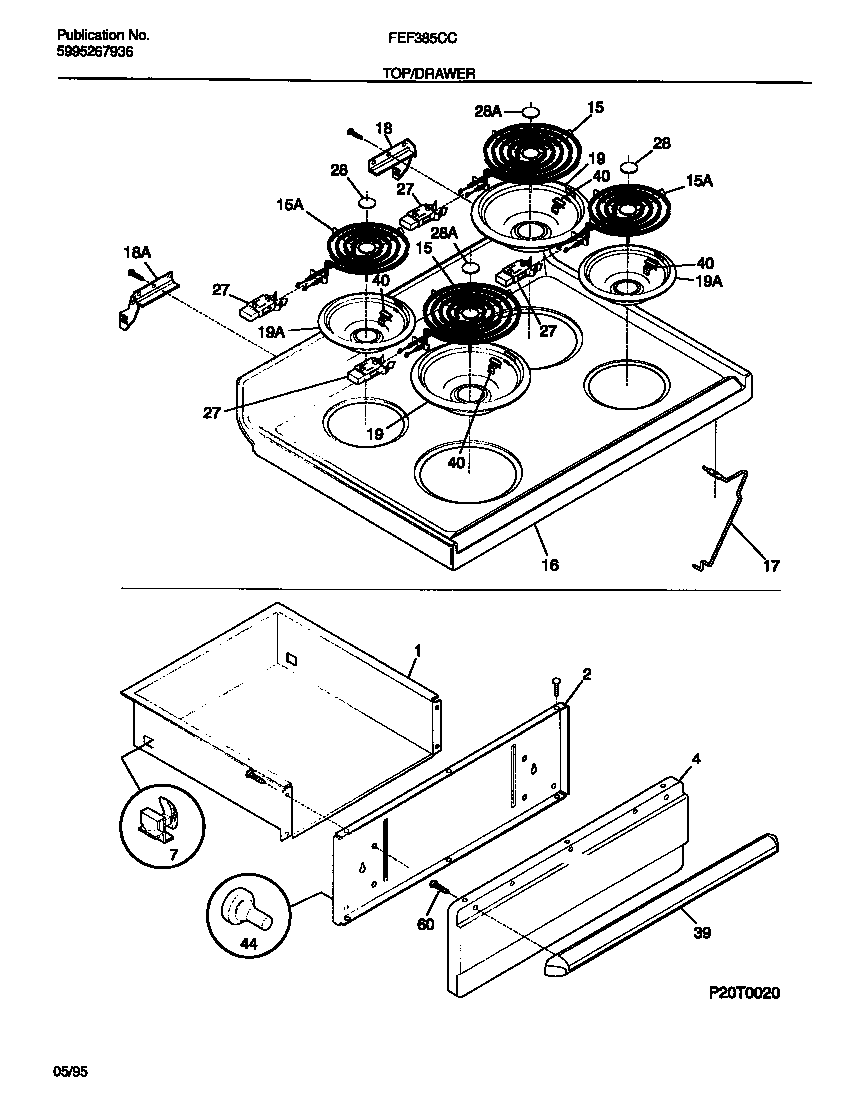

FEF385CCTB 04 – TOP/DRAWER

FEF385CCTB 04 – TOP/DRAWER

Written by

in

FEF385CCTB 04 – TOP/DRAWER

Products

PositionProduct
*05407WCI 5303281584
*05408131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
19PAN-SURFACE ELEMENT,ALMOND ,LARGE/8 INCH,(2)
19APAN-SURFACE ELEMENT,ALMOND ,SMALL/6 INCH,(2)
275303935058 Frigidaire Oven Burner Receptacle Kit
28A5303017715 Frigidaire Medallion
28WCI 5303296595
39WCI 316026104
40316058601 Frigidaire Oven Clip
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
