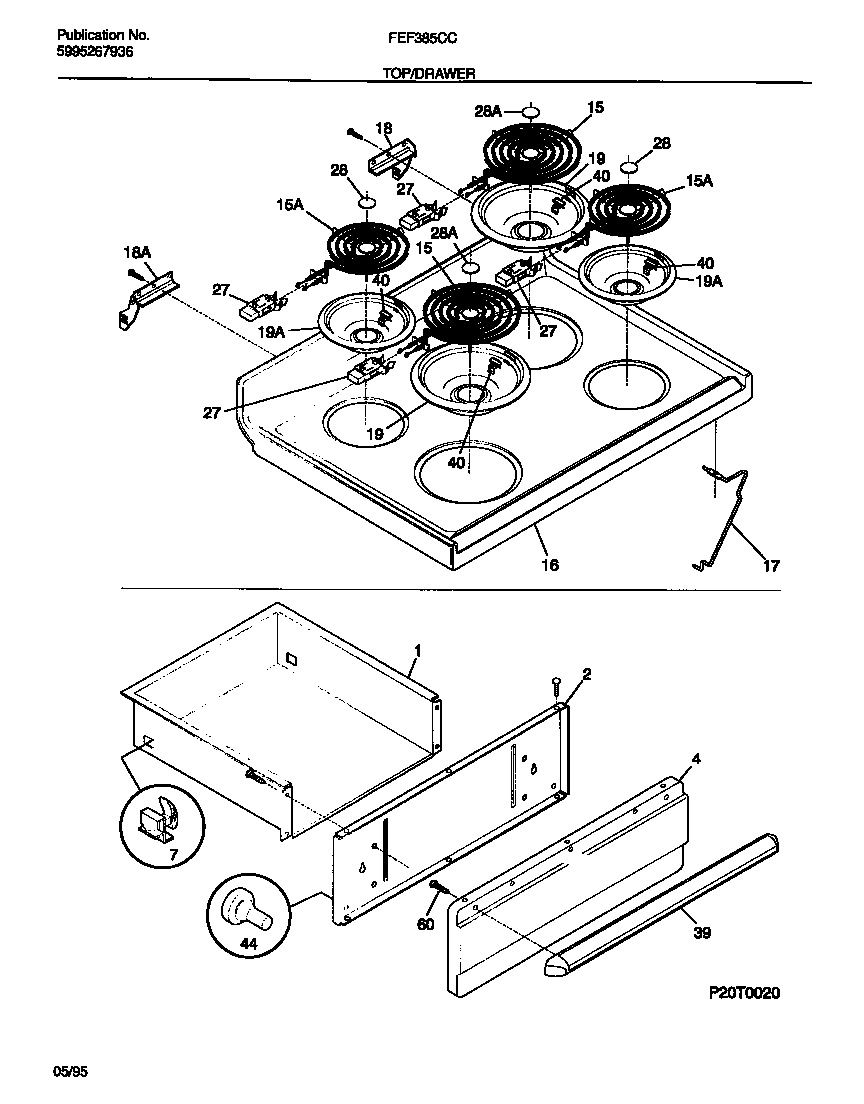

FEF385CCTC 04 – TOP/DRAWER

Products

Position	Product
*05407	WCI 5303281584
*05408	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316056206
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	316442301 Frigidaire Oven 8 Coil Element 2600W
15A	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	WCI 316020908
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
19	PAN-SURFACE ELEMENT,ALMOND ,LARGE/8 INCH,(2)
19A	PAN-SURFACE ELEMENT,ALMOND ,SMALL/6 INCH,(2)
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28A	5303017715 Frigidaire Medallion
28	WCI 5303296595
39	WCI 316026104
40	316058601 Frigidaire Oven Clip
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
