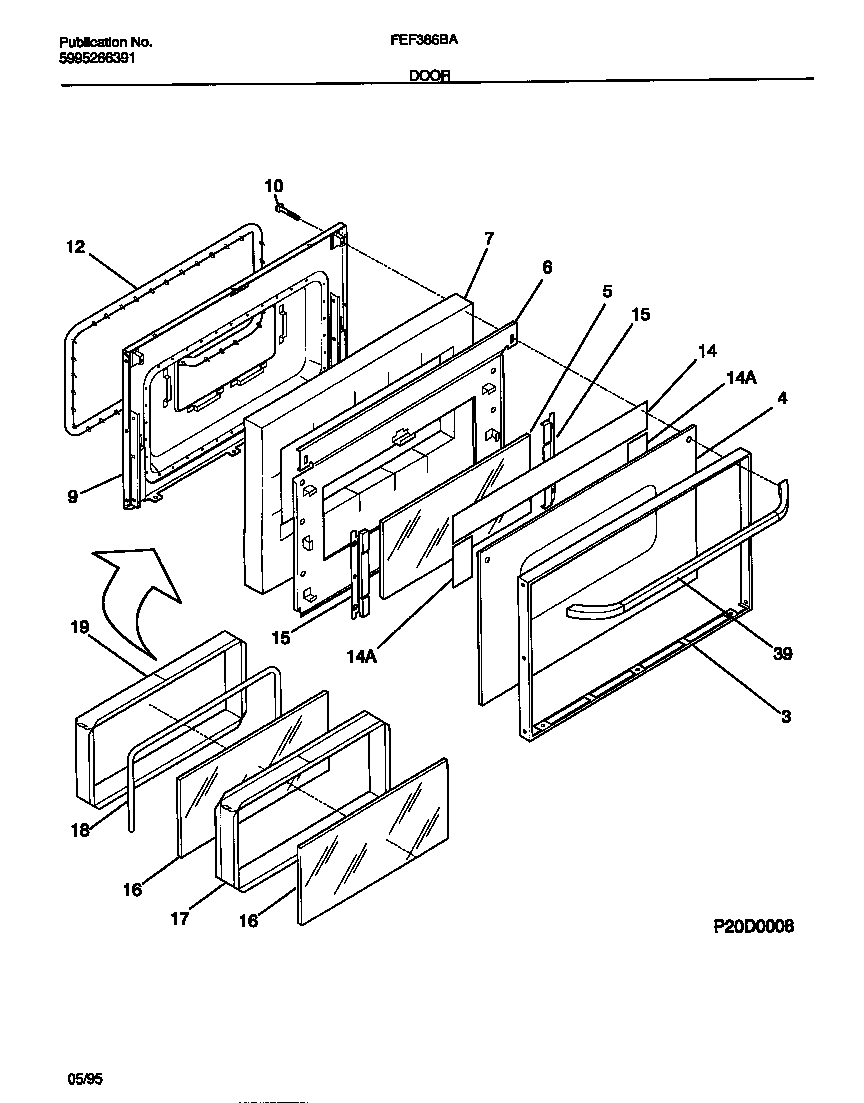

FEF386BAWA 05 – DOOR

Products

Position	Product
*80690	RIVET-POP, WARING-PLATE
*80691	WCI 316065300
*80692	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*80694	WCI 5303269859
*80693	5303300265 Frigidaire Oven Screw
*80695	5303285179 Frigidaire Oven Door Screw
3A	WCI 316067802
3B	WCI 5303209518
4	GLASS-OVEN DOOR, BLACK, OUTER
5	GLASS-OVEN DOOR, INNER
6	SHIELD-INSULATION
7	INSULATION-OVEN DOOR
9	WCI 316066603
10	SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
12	5303131601 Frigidaire Oven Seal
14	REFLECTOR, ALUMINUM FOIL
14	5303208655 Frigidaire Reflector Assembly
15	BRACKET-GLASS MTG
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303209517
18	SEAL-ROPE, 0.25 DIA
19	WCI 316067600
39	5304529996 Frigidaire Handle Kit
