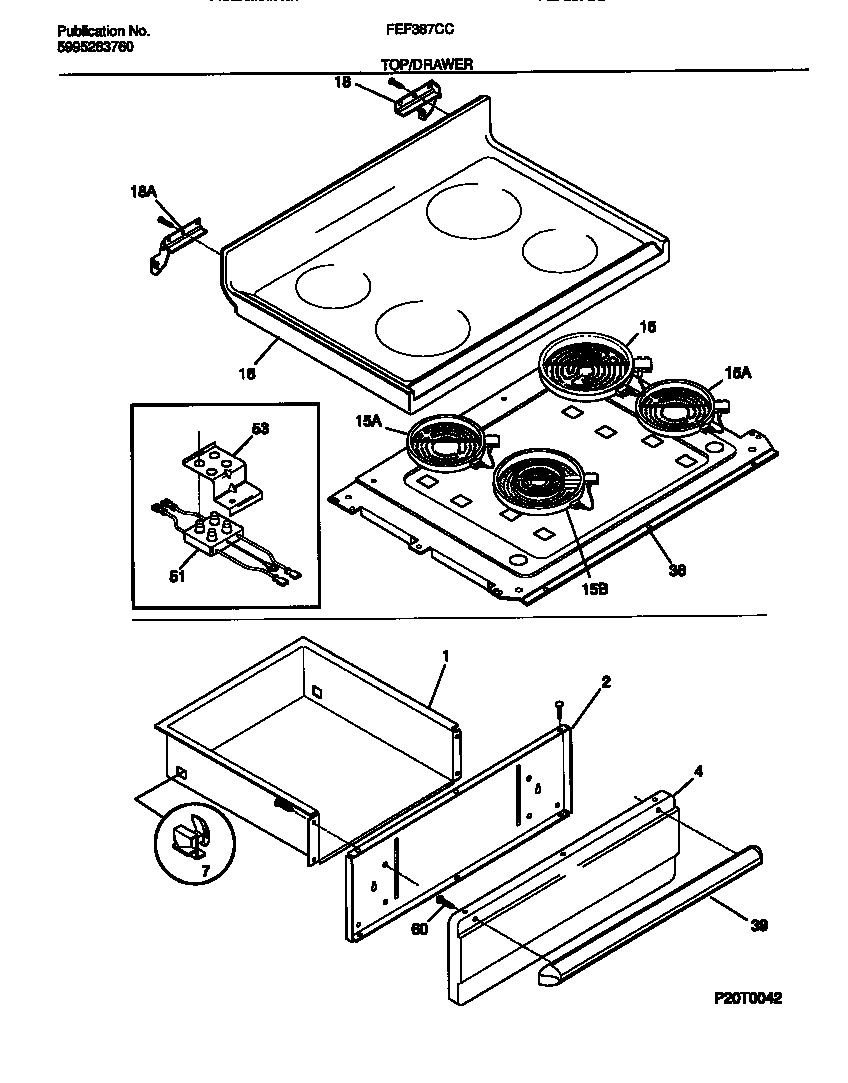

FEF387CCBA 04 – TOP/DRAWER

FEF387CCBA 04 – TOP/DRAWER

Written by

in

FEF387CCBA 04 – TOP/DRAWER

Products

PositionProduct
*24969WCI 5309951550
*24970WCI 5303281584
*24972WCI 5303288574
*24971131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056207
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15BLIMITER SWITCH, LARGE/8“, DUAL COIL (NON-ILLUSTRATED)
15AWCI 316049700
15318178110 Frigidaire Oven Range 6" Surface Element
15A318198834 Frigidaire Oven Element
15BLIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15WCI 5303305628
16WCI 316035584
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36CWCI 316041001
36BWCI 316023301
36AWCI 316033609
39WCI 316026100
51WCI 316078200
53WCI 316082401
