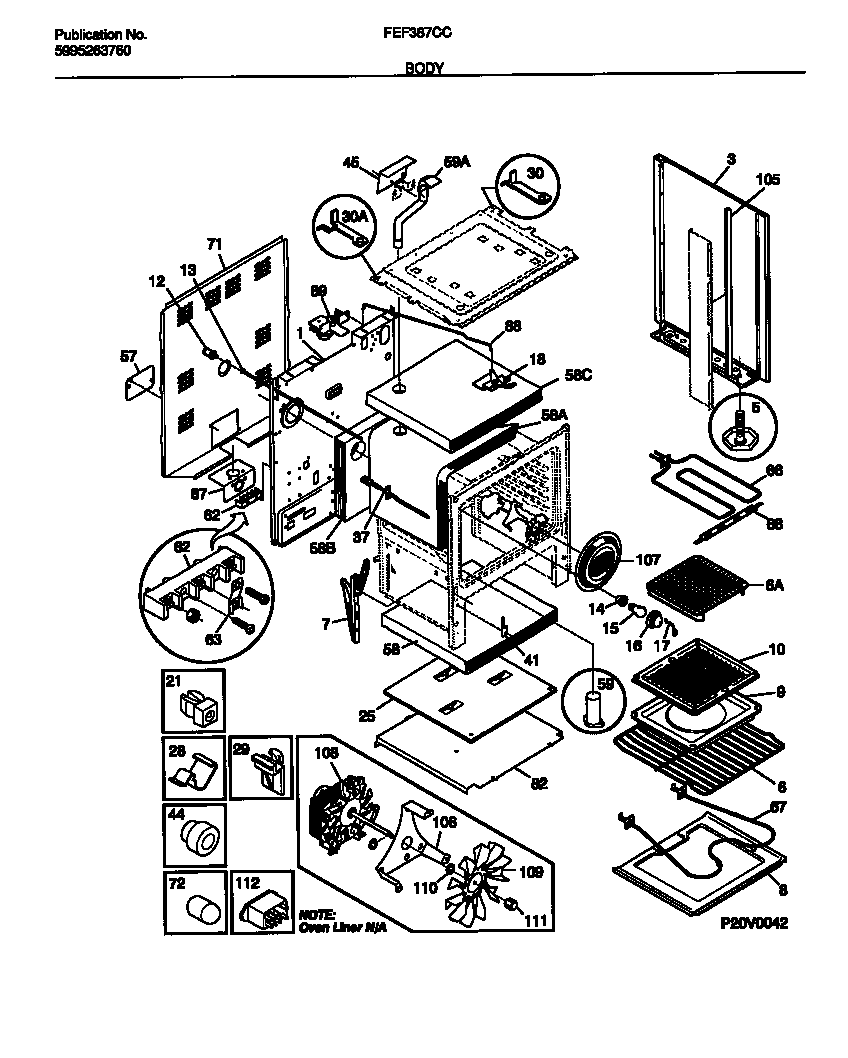

FEF387CCSA 03 – BODY

FEF387CCSA 03 – BODY

Written by

in

FEF387CCSA 03 – BODY

Products

PositionProduct
*24968WCI 5303281584
*24964FASTENER-EDGE MTG (NOT ILLUSTRATED)
*24967316205500 Frigidaire Oven Nut
*24966WCI 316075400
*249653203550 Frigidaire Oven Plug
*24963WCI 316001175
1WCI 316029410
3WCI 316081005
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 316081004
5ASCREW-LEVELING
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C316116000 Frigidaire Screw
5BWCI 3934058
6316067902 Frigidaire Oven Rack
6WCI 316085400
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 316073900
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
28Clip,wiring harness ,green ,main top
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066101
57COVER-ACCESS
58INSULATION, OVEN TOP
58WCI 316054201
58316403803 Frigidaire Insulation
58INSULATION, OVEN WRAPPER
59WCI 316073602
59BRACKET-MOUNTING,VENT TUBE
59WCI 316023601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD, REAR WALL, REAR WALL
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
88WCI 316026400
89WCI 316028101
105WCI 316071900
106WCI 316026601
107316026701 Frigidaire Oven Cover Assembly
108WCI 316049401
109WCI 316054500
110WCI 316054600
111WCI 316054700
112WCI 316082700
