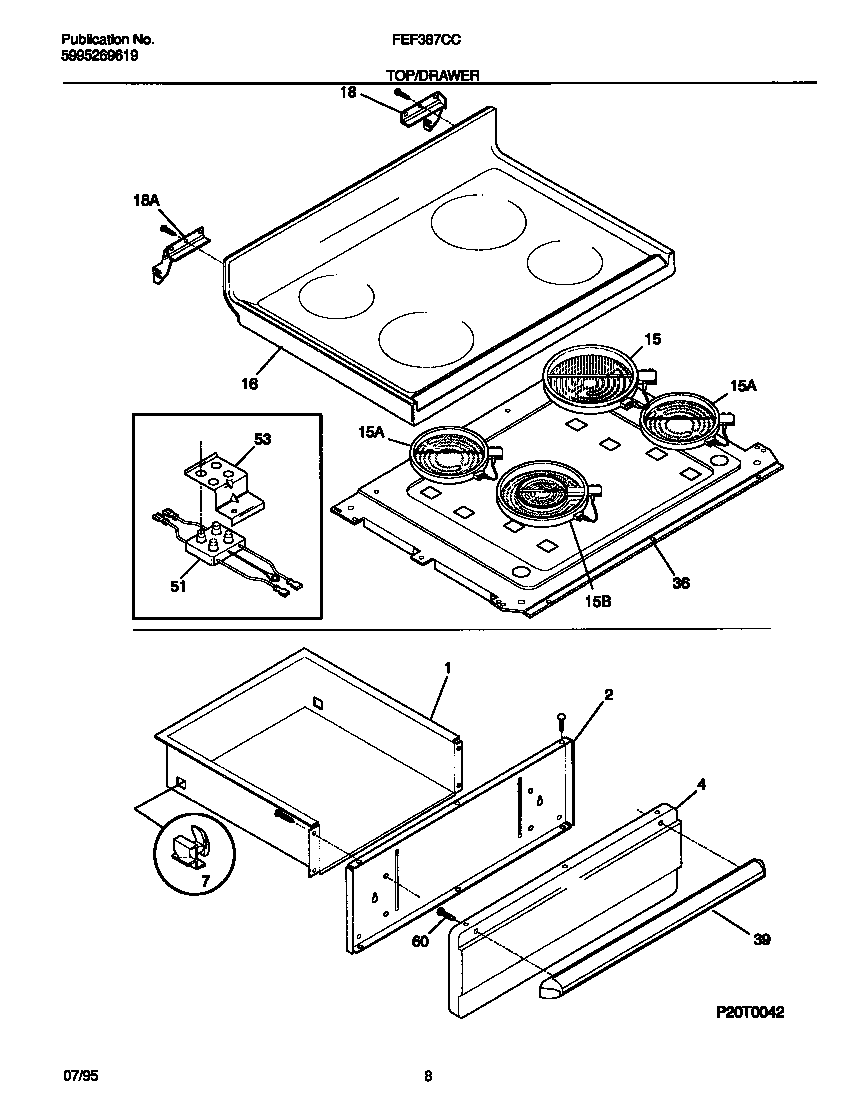

FEF387CCSB 04 – TOP/DRAWER

Products

Position	Product
*62088	RIVET-POP, WARING-PLATE
*62092	WCI 5309951550
*62089	WCI 5303281379
*62091	131243700 Frigidaire Screw
*62087	3131903 Frigidaire Door/Drawer Bumper
*62090	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL-BROILER, WHITE
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	318198834 Frigidaire Oven Element
15D	LIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15B	WCI 316049700
15A	318178110 Frigidaire Oven Range 6" Surface Element
15C	WCI 5303305628
16	WCI 316035582
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
36A	WCI 316023301
36	WCI 316033610
36B	WCI 316041001
39	WCI 316026103
51	WCI 316078200
53	WCI 316082401
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
