FEF387CCSC 02 – BACKGUARD

FEF387CCSC 02 – BACKGUARD

Written by

in

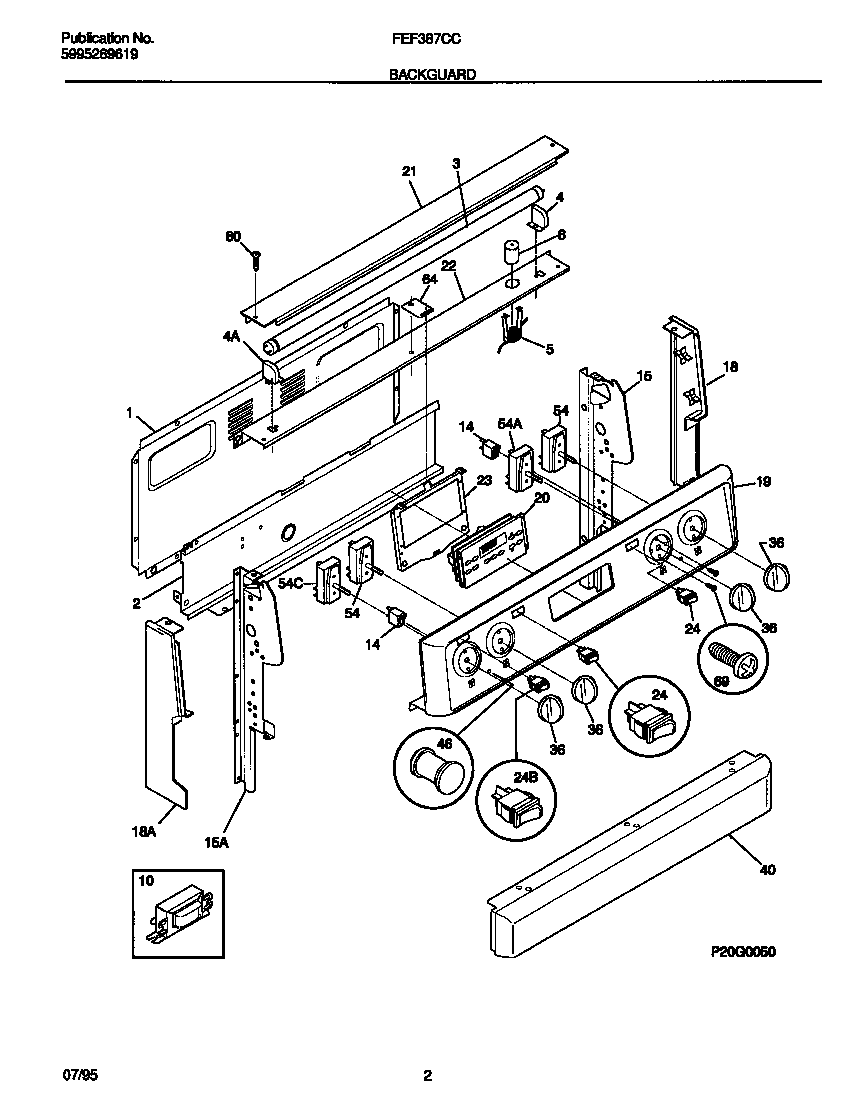

FEF387CCSC 02 – BACKGUARD

Products

PositionProduct
*62080316021105 Frigidaire Oven Screw
*62081WCI 5303281584
1WCI 316081601
2WCI 316015905
3BULB-FLUOR
4ARECEPTACLE-FLU LT RH
4RECEPTACLE-FLU LT LH
5WCI 316053200
6STARTER-LAMP
10WCI 5303051115
14316022503 Frigidaire Light Lamp P-1
15AWCI 316049107
15WCI 316049106
18AEND CAP, WHITE, LH
18END CAP, WHITE, RH
19WCI 316024523
20WCI 316027414
21WCI 316024902
22WCI 316059901
23WCI 316060003
245304527842 Frigidaire Rocker Switch
24BSWITCH-ROCKER,WHITE, DUAL ELEMENT
36316025106 Frigidaire Control Knob
40WCI 316025801
46318228310 Frigidaire Oven Lens
54C5304528972 Frigidaire Switch
545303935086 Frigidaire Oven Top Burner Switch Kit
54A316436001 Frigidaire Oven Range Infinite Burner Switch
60WCI 5303288574
64WCI 316062400
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
