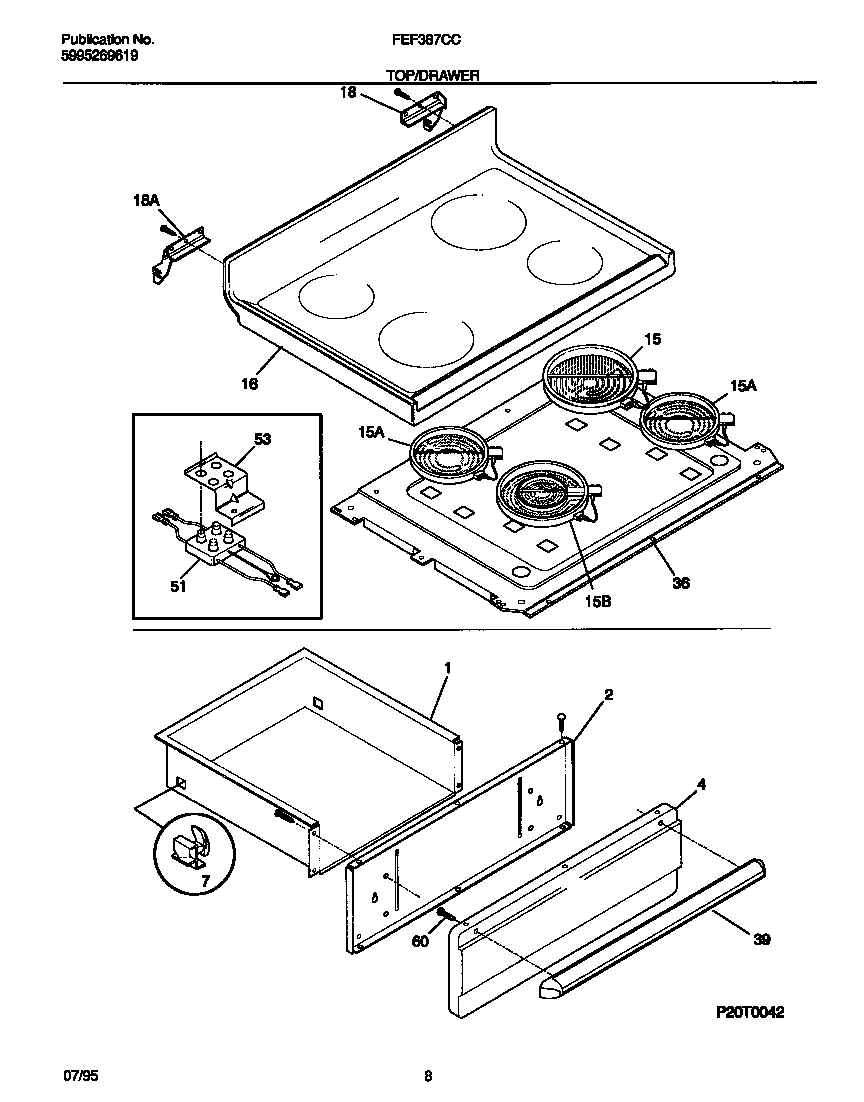

FEF387CCSC 04 – TOP/DRAWER

Products

PositionProduct
*62088RIVET-POP, WARING-PLATE
*62092WCI 5309951550
*62089WCI 5303281379
*62091131243700 Frigidaire Screw
*620873131903 Frigidaire Door/Drawer Bumper
*62090WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL-BROILER, WHITE
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198834 Frigidaire Oven Element
15DLIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15BWCI 316049700
15A318178110 Frigidaire Oven Range 6" Surface Element
15CWCI 5303305628
16WCI 316035582
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
36AWCI 316023301
36WCI 316033610
36BWCI 316041001
39WCI 316026103
51WCI 316078200
53WCI 316082401
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
