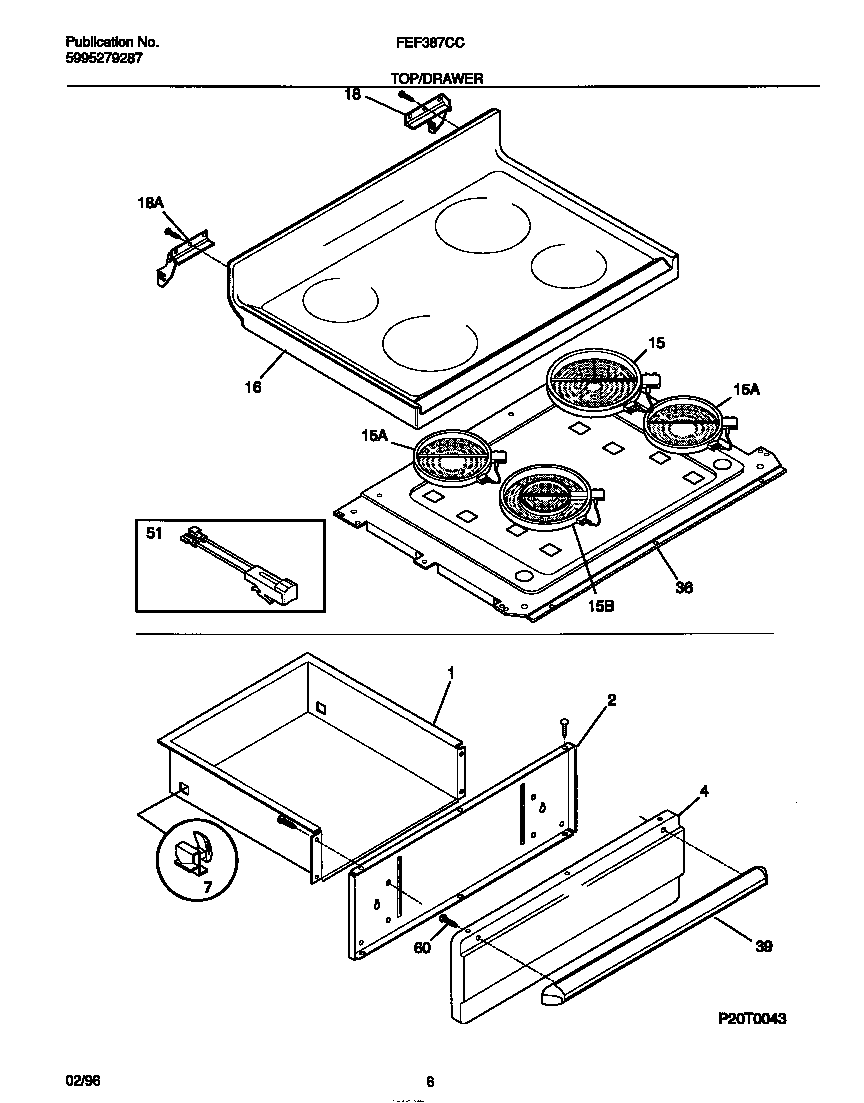

FEF387CCSE 04 – TOP/DRAWER

Products

Position	Product
*80249	RIVET-POP, WARING-PLATE
*80252	WCI 5309951550
*80250	131243700 Frigidaire Screw
*80248	3131903 Frigidaire Door/Drawer Bumper
*80251	WCI 5303288574
*80247	Screw,cup pt ,8-18 x 0.375 ,chrome
1	DRAWER-UTILITY
2	SHIELD-PNL
4	PANEL-BROILER, WHITE
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	WCI 316049701
15	318198817 Frigidaire Oven Element
15	318198834 Frigidaire Oven Element
16	WCI 316035582
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
36B	WCI 316023301
36C	WCI 316041001
36A	WCI 316033610
39	WCI 316026103
51	WCI 316078200
60	WCI 5303280308
