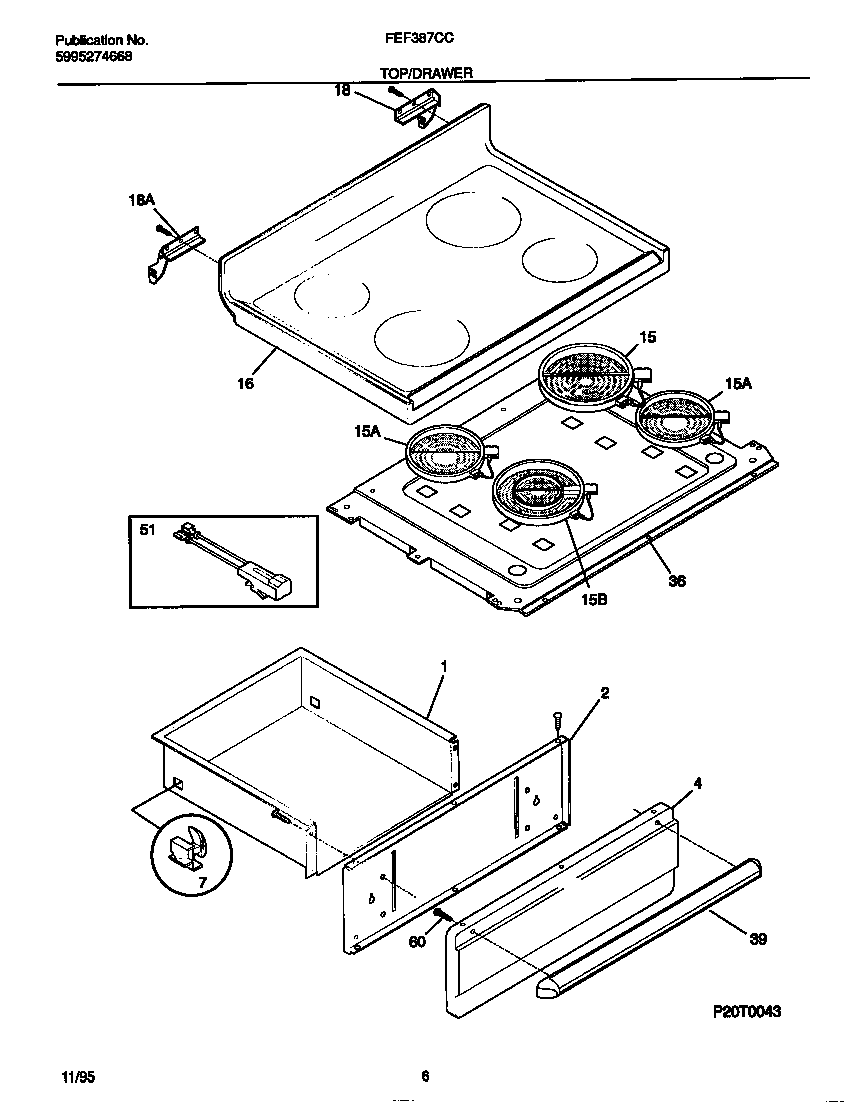

FEF387CCTD 04 – TOP/DRAWER

FEF387CCTD 04 – TOP/DRAWER

Written by

in

FEF387CCTD 04 – TOP/DRAWER

Products

PositionProduct
*70367RIVET-POP, WARING-PLATE
*70369131243700 Frigidaire Screw
*703663131903 Frigidaire Door/Drawer Bumper
*70370WCI 5303288574
*70371WCI 5309951550
*70368WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15WCI 316049700
15A318178110 Frigidaire Oven Range 6" Surface Element
15BLIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15BWCI 5303305628
15A318198834 Frigidaire Oven Element
16WCI 316035583
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36CWCI 316041001
36BWCI 316023301
36AWCI 316033610
39WCI 316026104
51WCI 316078200
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
