FEF387CCTE 04 – TOP/DRAWER

FEF387CCTE 04 – TOP/DRAWER

Written by

in

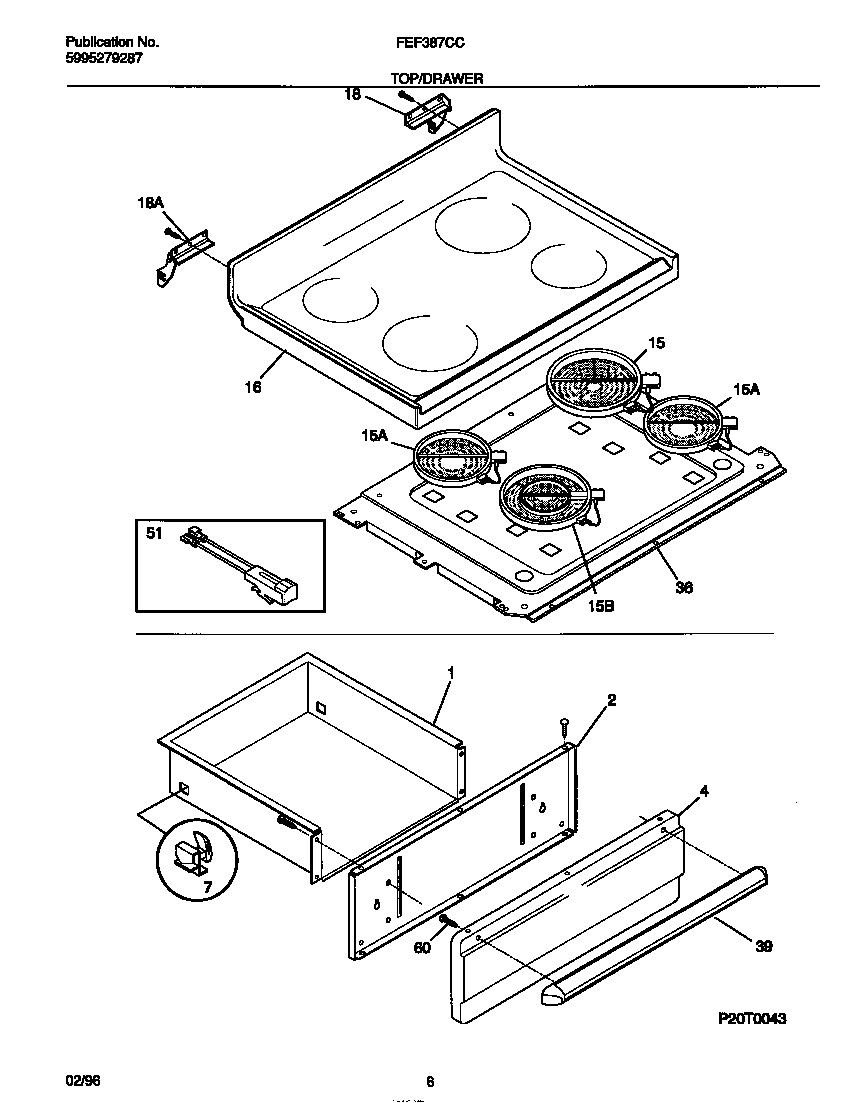

FEF387CCTE 04 – TOP/DRAWER

Products

PositionProduct
*80249RIVET-POP, WARING-PLATE
*80252WCI 5309951550
*80250131243700 Frigidaire Screw
*802483131903 Frigidaire Door/Drawer Bumper
*80251WCI 5303288574
*80247Screw,cup pt ,8-18 x 0.375 ,chrome
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15WCI 316049701
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
16WCI 316035583
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36BWCI 316023301
36CWCI 316041001
36AWCI 316033610
39WCI 316026104
51WCI 316078200
60WCI 5303280308
