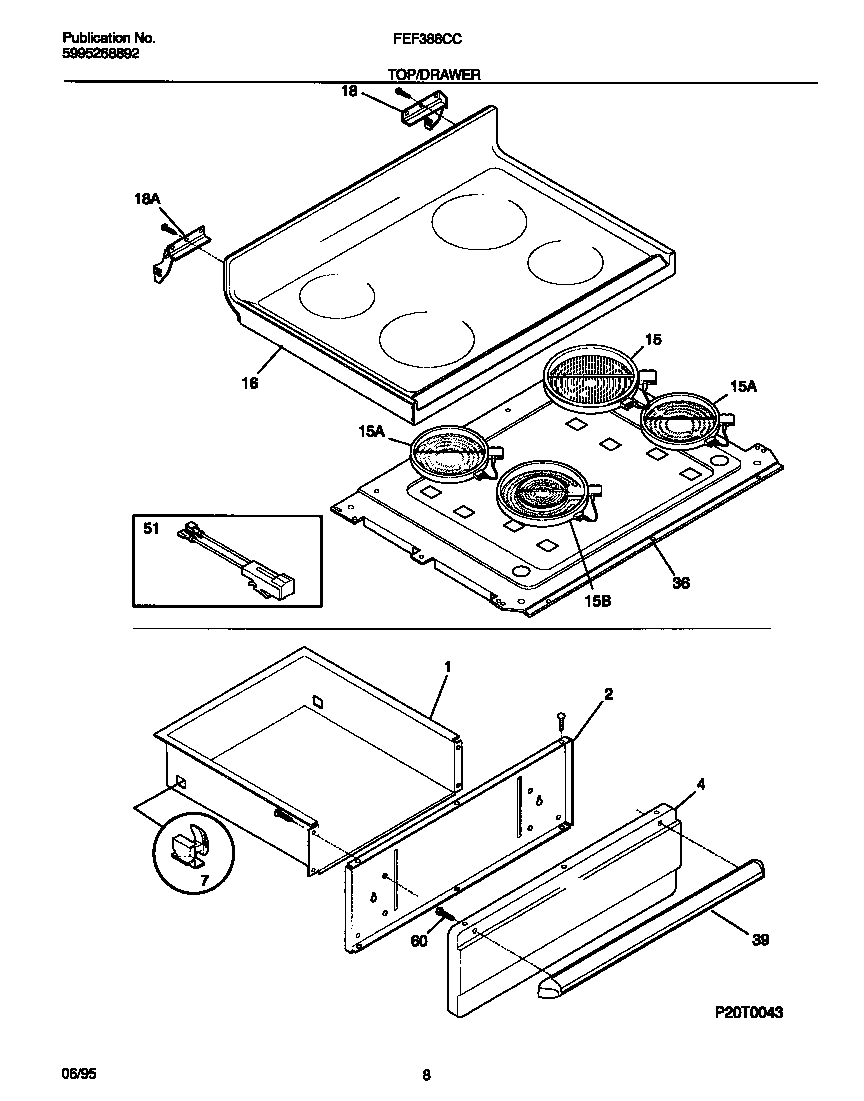

FEF388CCTC 04 – TOP/DRAWER

FEF388CCTC 04 – TOP/DRAWER

Written by

in

FEF388CCTC 04 – TOP/DRAWER

Products

PositionProduct
*45292WCI 5309951550
*45290WCI 5303281584
*45291131243700 Frigidaire Screw
*452893131903 Frigidaire Door/Drawer Bumper
1DRAWER-UTILITY
2SHIELD-PNL
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318178110 Frigidaire Oven Range 6" Surface Element
15AWCI 5303305628
15BWCI 316049700
15WCI 316027900
15AWCI 316028000
16WCI 316035547
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36BWCI 316041001
36WCI 316033610
36AWCI 316023301
39WCI 316026104
51WCI 316078200
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
