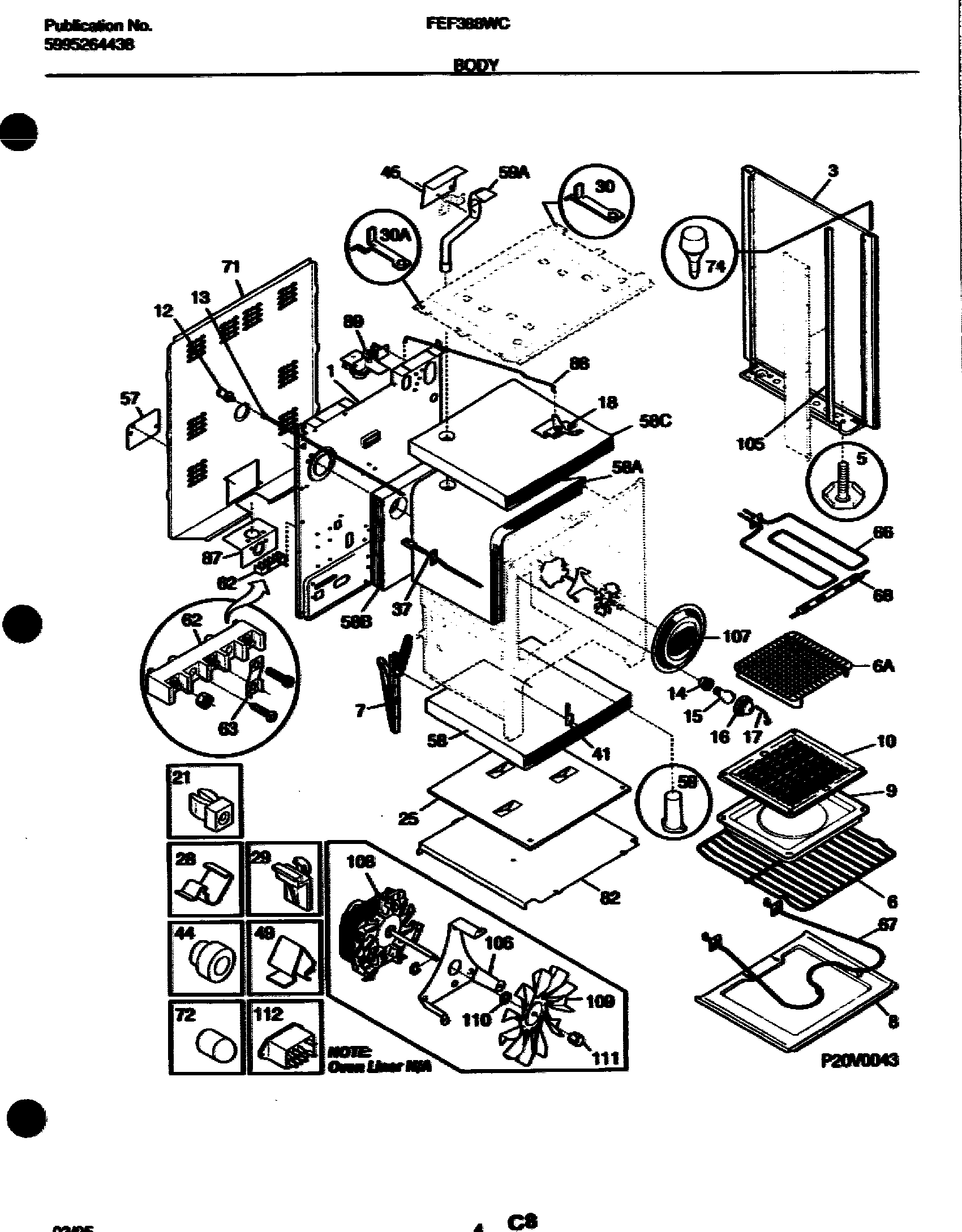

FEF388WCCA 05 – BODY

FEF388WCCA 05 – BODY

Written by

in

FEF388WCCA 05 – BODY

Products

PositionProduct
NIWCI 5303281584
NI316205500 Frigidaire Oven Nut
NIWCI 316075400
NI3203550 Frigidaire Oven Plug
1WCI 316029410
3WCI 316081003
3WCI 316081002
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
5WCI 3934058
5SCREW-LEVELING
6AWCI 316085400
65304531722 Frigidaire Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
28Clip,wiring harness ,green ,main top
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30ABRACKET-HINGE, MAIN TOP, LH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066101
493205821 Frigidaire Clip
57COVER-ACCESS
58316403803 Frigidaire Insulation
58BWCI 316054201
58CINSULATION, OVEN TOP
58AINSULATION, OVEN WRAPPER
59AWCI 316023600
59WCI 316073602
59BRACKET-VENT TUBE (NOT ILLUSTRATED)
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD, REAR WALL, REAR WALL
72COVER-LIGHT/SWITCH ROD
74BUMPER, COOKTOP (4)
82SHIELD, OVEN BOTTOM
87WCI 5303206618
88WCI 316026400
89WCI 316028101
105WCI 316071900
106WCI 316026601
107316026701 Frigidaire Oven Cover Assembly
108WCI 316049401
108WCI 316021106
109WCI 316054500
110WCI 316054600
111WCI 316054700
112WCI 316082700
