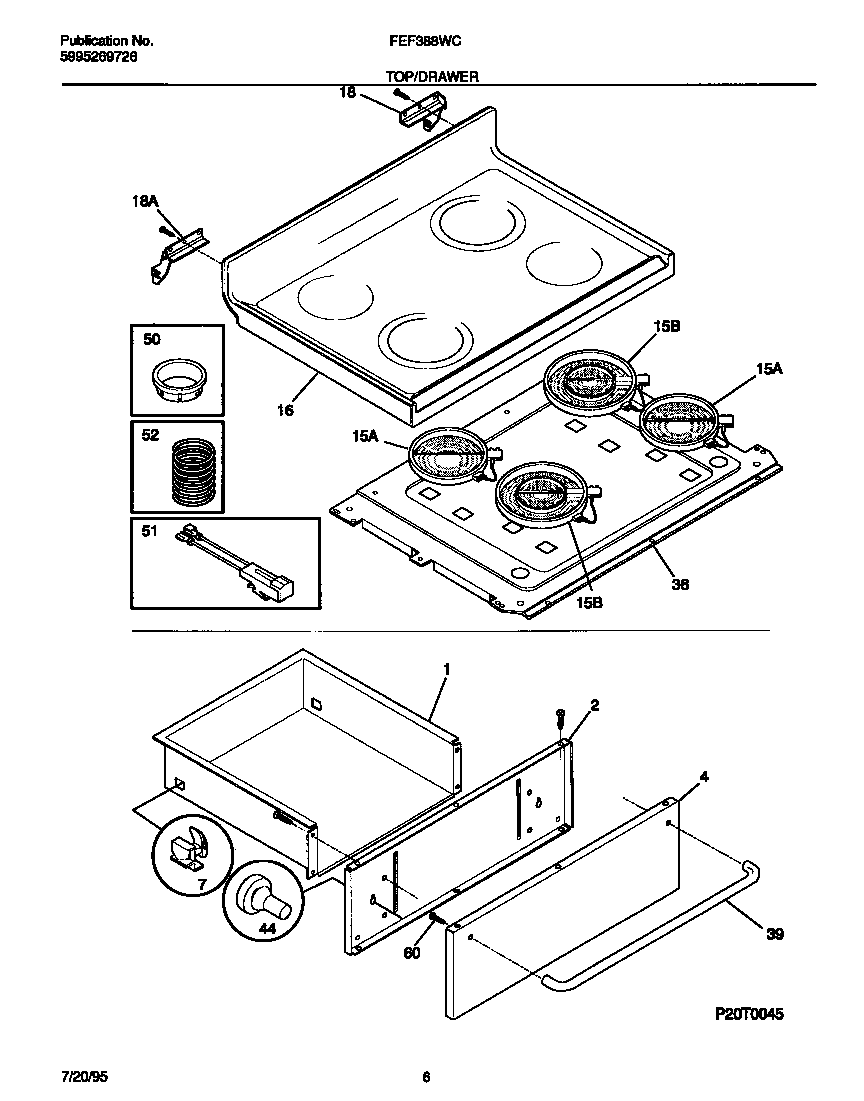

FEF388WCCB 04 – TOP/DRAWER

Written by

Products

Position	Product
*16853	RIVET-POP, WARING-PLATE
*16854	WCI 218490900
*16855	LENS-LIGHT/LAMP, INDICATOR
*16857	WCI 5303281584
*16859	WCI 5309951550
*16856	WCI 316078000
*16858	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316079400
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	318178110 Frigidaire Oven Range 6" Surface Element
15	WCI 316049700
15	WCI 5303305628
16	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16	WCI 316035527
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
36	WCI 316041001
36	WCI 316023301
36	WCI 316077901
39	WCI 316079500
44	3131903 Frigidaire Door/Drawer Bumper
50	WCI 316072100
51	WCI 316034801
52	WCI 316078100
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
