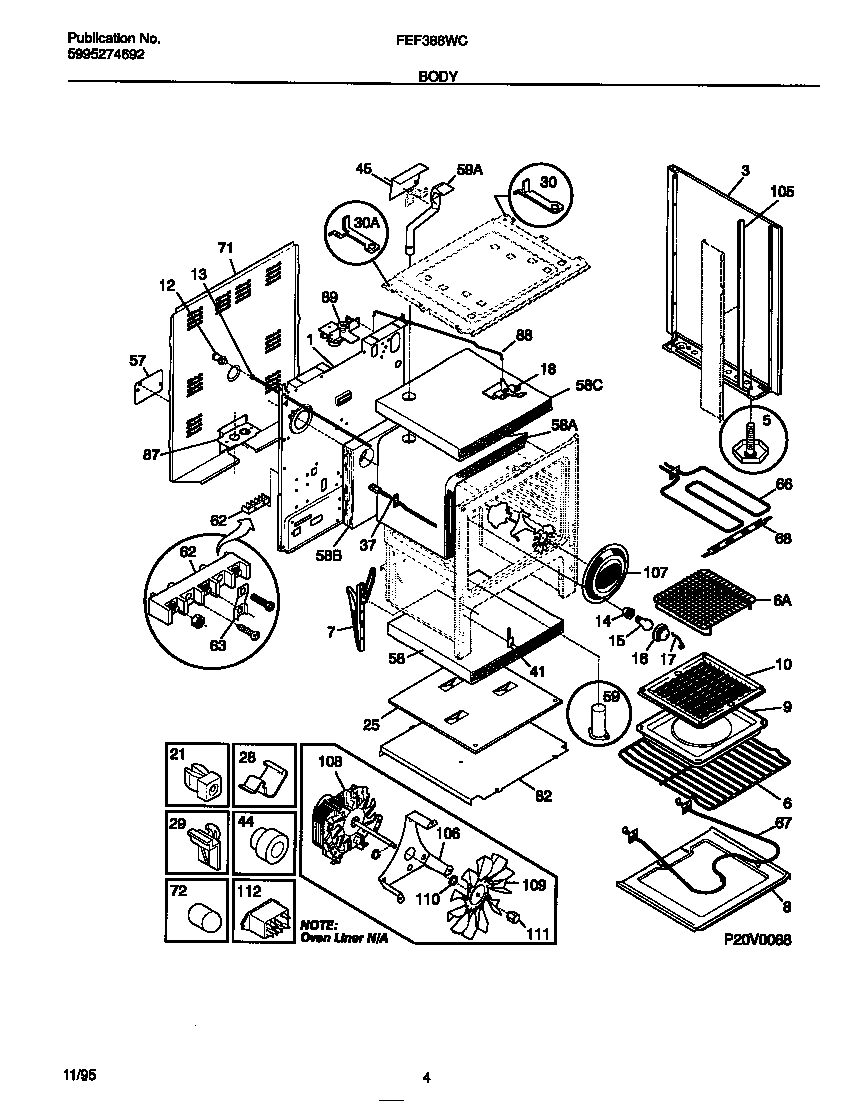

FEF388WCCC 03 – BODY

FEF388WCCC 03 – BODY

Written by

in

FEF388WCCC 03 – BODY

Products

PositionProduct
*73011WCI 5303281584
*73008SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*73006BUMPER, COOKTOP (4)
*730073205821 Frigidaire Clip
*730093203550 Frigidaire Oven Plug
*73012WCI 316001345
*73010316205500 Frigidaire Oven Nut
1WCI 316080801
3WCI 316081002
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 316081003
5SCREW-LEVELING
5WCI 3934058
5316116000 Frigidaire Screw
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
65304531722 Frigidaire Rack
6WCI 316085400
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
28Clip,wiring harness ,green ,main top
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066101
57WCI 316081101
58316403803 Frigidaire Insulation
58WCI 316054201
58INSULATION, OVEN TOP
58INSULATION, OVEN WRAPPER
59BRACKET-VENT TUBE (NOT ILLUSTRATED)
59WCI 316073602
59WCI 316023600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 316081201
88WCI 316026400
89WCI 316028101
105WCI 316071900
106WCI 316026601
107316026701 Frigidaire Oven Cover Assembly
108WCI 316049401
108WCI 316021106
109WCI 316054500
110WCI 316054600
111WCI 316054700
112WCI 316082700
