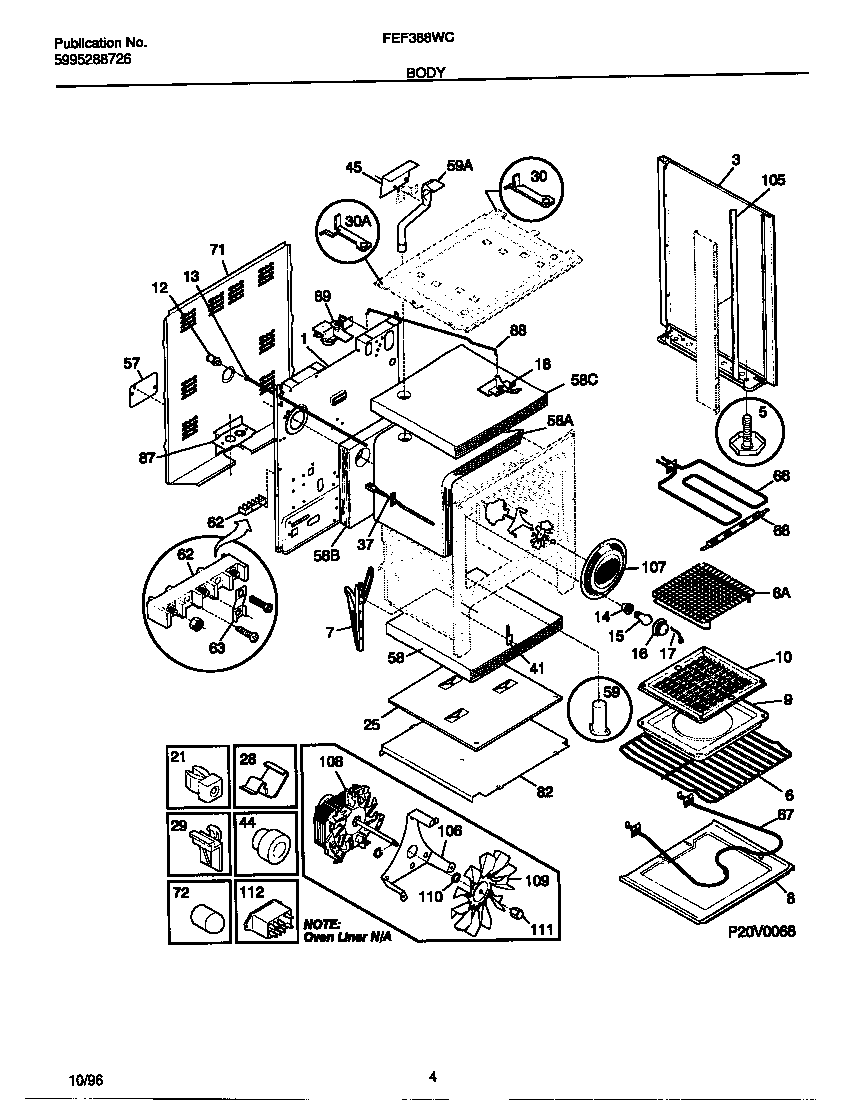

FEF388WCCF 03 – BODY

FEF388WCCF 03 – BODY

Written by

in

FEF388WCCF 03 – BODY

Products

PositionProduct
*59089SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*59087Screw,cup pt ,8-18 x 0.375 ,chrome
*590853205821 Frigidaire Clip
*590863203550 Frigidaire Oven Plug
*59090WCI 316001345
*59088316205500 Frigidaire Oven Nut
1WCI 316080801
3WCI 316081027
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 316081026
3BUMPER, COOKTOP (4)
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
5WCI 3934058
5316116000 Frigidaire Screw
65304531722 Frigidaire Rack
6WCI 316085400
7WCI 316007005
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
28Clip,wiring harness ,green ,main top
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066101
57WCI 316081101
58316054202 Frigidaire Insulation
58316047707 Frigidaire Insulation
58INSULATION, OVEN TOP
58316403803 Frigidaire Insulation
59BRACKET-VENT TUBE (NOT ILLUSTRATED)
59WCI 316073602
59WCI 316023600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 316081201
88WCI 316026400
89WCI 316028101
105WCI 316071900
106WCI 316026601
107316026701 Frigidaire Oven Cover Assembly
108WCI 316090500
108SCREW,8-18 X 1.500
109WCI 316090600
110WCI 316090700
111WCI 316090800
112WCI 316082700
