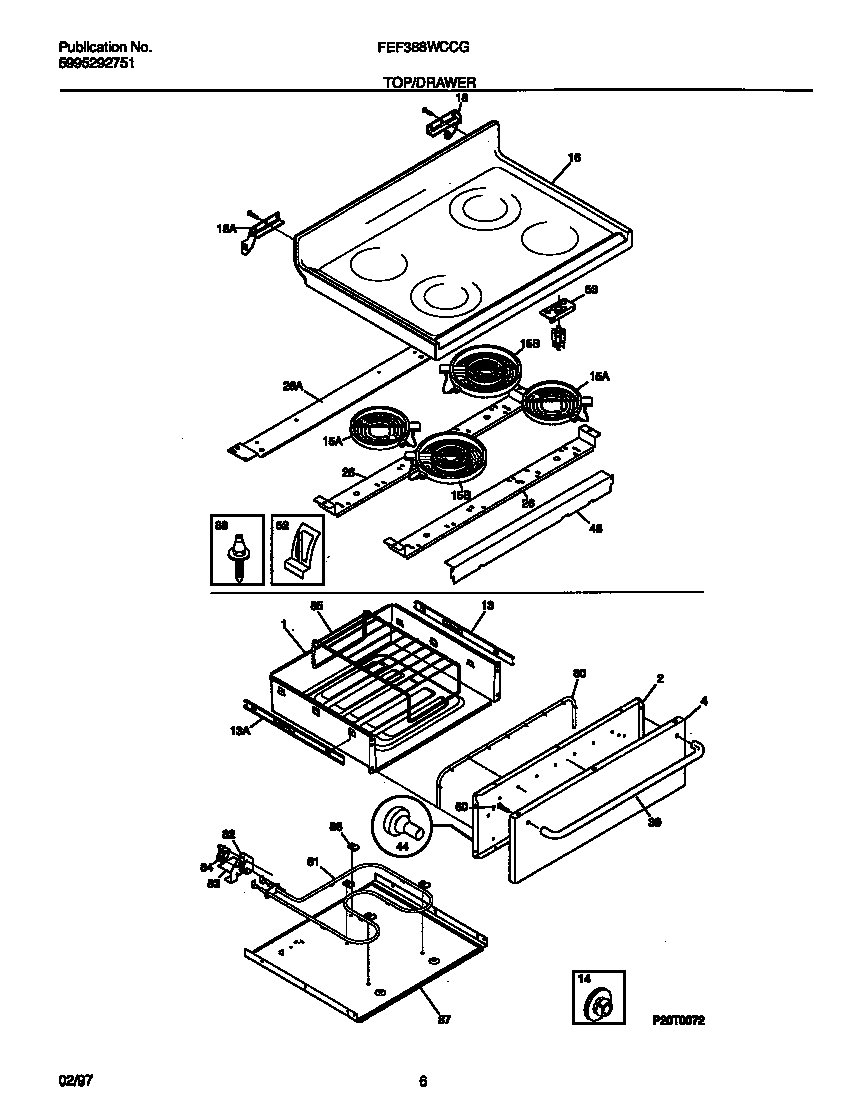

FEF388WCCG 04 – TOP/DRAWER

Products

Position	Product
*03491	RIVET-POP, WARING-PLATE
*03493	WCI 5309951550
*03497	131243700 Frigidaire Screw
*03496	WCI 5303280311
*03492	WCI 316078100
*03498	WCI 5303288574
*03495	Screw,cup pt ,8-18 x 0.375 ,chrome
*03499	WCI 316001734
*03494	316021105 Frigidaire Oven Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316079401
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	WCI 316049702
15	318198817 Frigidaire Oven Element
16	WCI 316098118
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
26	WCI 316099101
26	WCI 316099201
39	WCI 316079500
44	3131903 Frigidaire Door/Drawer Bumper
52	Clip,element mtg
53	WCI 316099301
60	316089500 Frigidaire Oven Screw
88	316099500 Frigidaire Oven Pin
