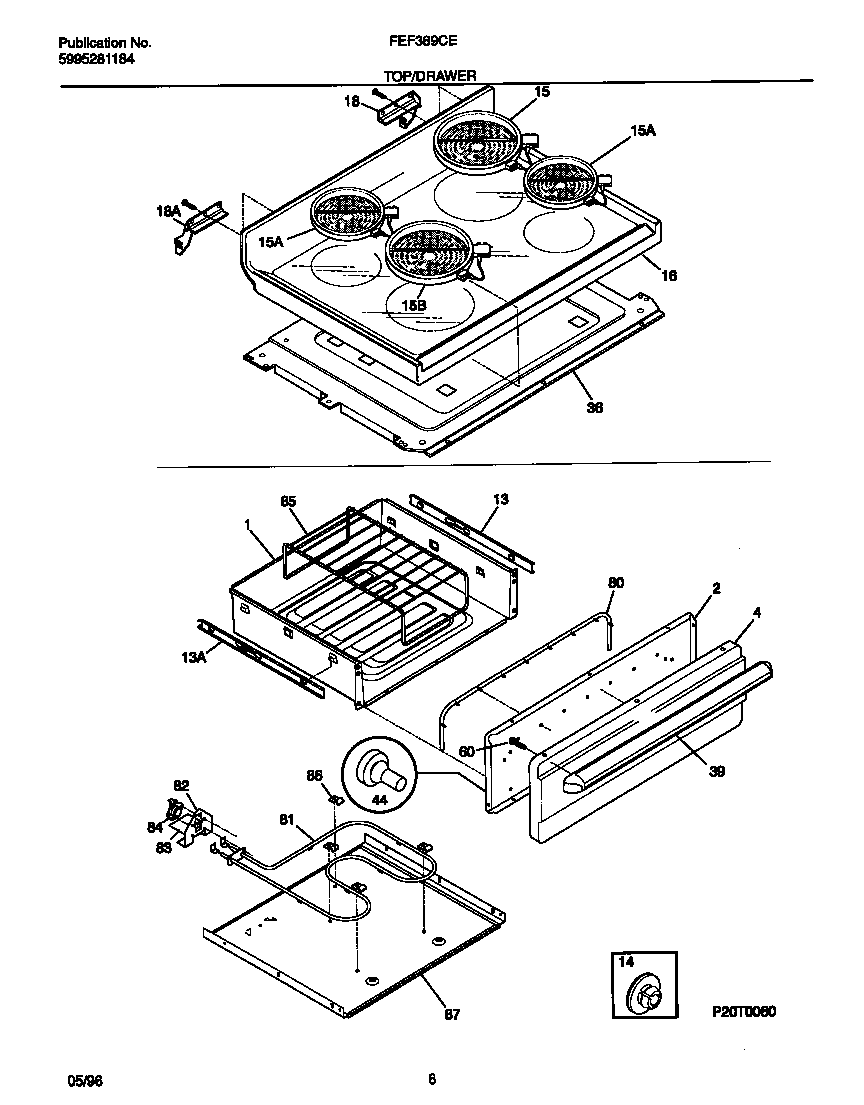

FEF389CESA 04 – TOP/DRAWER

FEF389CESA 04 – TOP/DRAWER

Written by

in

FEF389CESA 04 – TOP/DRAWER

Products

PositionProduct
*11367RIVET-POP, WARING-PLATE
*11369131243700 Frigidaire Screw
*11370WCI 5303288574
*11368Screw,cup pt ,8-18 x 0.375 ,chrome
*11371WCI 5309951550
1WCI 316094601
2WCI 316092901
4PANEL-BROILER, WHITE
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
13WCI 316096500
13WCI 316096501
14WCI 3206216
15WCI 316049701
15WCI 316027900
15BWCI 316028000
15A318198817 Frigidaire Oven Element
16WCI 316035543
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
36CWCI 316041001
36AWCI 316033610
36BWCI 316023301
39WCI 316026103
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303280308
80WCI 316093000
81WCI 316093100
82316093200 Frigidaire Bracket
83WCI 316093300
84WCI 316093500
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091902
