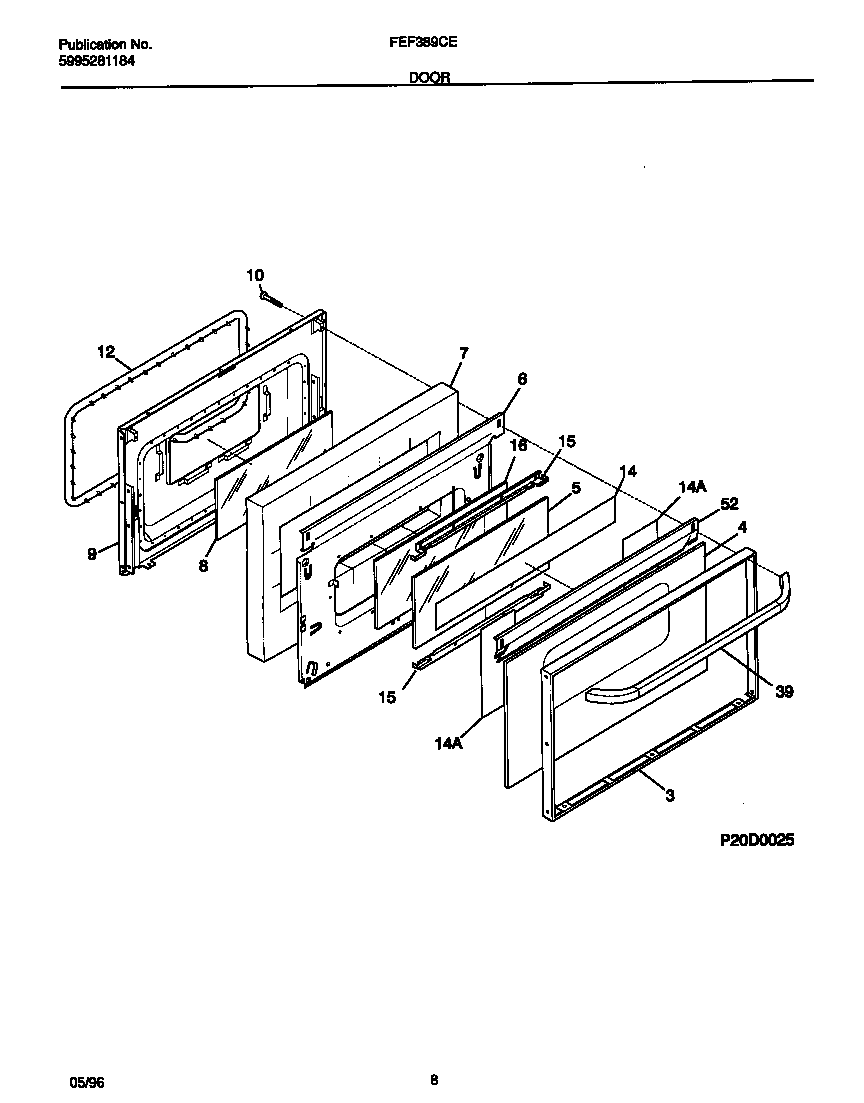

FEF389CESA 05 – DOOR

FEF389CESA 05 – DOOR

Written by

in

FEF389CESA 05 – DOOR

Products

PositionProduct
*11376SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*11373SPACER-HANDLE, WHITE (2)
*11375WCI 316065301
*11380131243700 Frigidaire Screw
*11378WCI 5303280311
*113775303271648 Frigidaire Oven Screw
*113795303285179 Frigidaire Oven Door Screw
3WCI 316067804
4WCI 316089005
5GLASS-OVEN DOOR, AIRWASH
6WCI 316088401
7WCI 316076400
8WCI 316088700
9WCI 316066610
10WCI 5303280308
125303131601 Frigidaire Oven Seal
145303208655 Frigidaire Reflector Assembly
14ALUM FOIL-B/G GLASS
15WCI 316081401
16WCI 316085700
395304530039 Frigidaire Handle Set
52WCI 316081301
