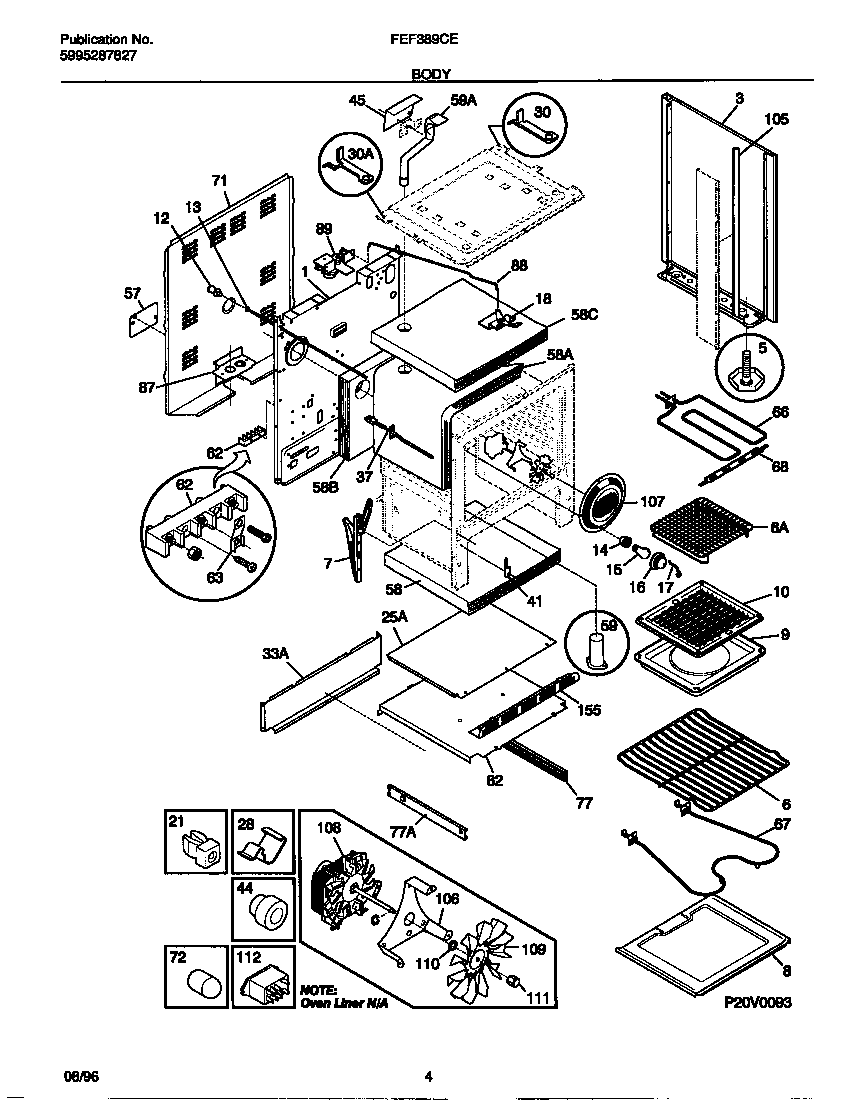

FEF389CETB 03 – BODY

FEF389CETB 03 – BODY

Written by

in

FEF389CETB 03 – BODY

Products

PositionProduct
*52444Screw,cup pt ,8-18 x 0.375 ,chrome
*524433203550 Frigidaire Oven Plug
*52446WCI 316001352
*52445316205500 Frigidaire Oven Nut
1WCI 316080801
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 316081006
3WCI 316081007
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5ASCREW-LEVELING
5BWCI 3934058
5C316116000 Frigidaire Screw
6WCI 316085400
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 316092401
28Clip,wiring harness ,green ,main top
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
33WCI 316095301
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066101
57WCI 316081101
58316047707 Frigidaire Insulation
58316403803 Frigidaire Insulation
58INSULATION, OVEN TOP
58316054202 Frigidaire Insulation
59BBRACKET-MOUNTING,VENT TUBE
59WCI 316023601
59AWCI 316073602
625304409888 Frigidaire Oven Terminal Block with Hardware
63APLATE=GROUND STRAP
63BPLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
77Rail,drawer ,RH outer
77RAIL-DRAWER,LH,OUTER
82SHIELD, OVEN BOTTOM
87WCI 316081201
88WCI 316026400
89AWCI 316028102
89BINSULATOR, LATCH MOTOR (NOT ILLUSTRATED)
105WCI 316071900
106WCI 316026601
107316026701 Frigidaire Oven Cover Assembly
108BWCI 316021106
108AWCI 316090500
109WCI 316090600
110WCI 316090700
111WCI 316090800
112WCI 316082700
155WCI 316095201
