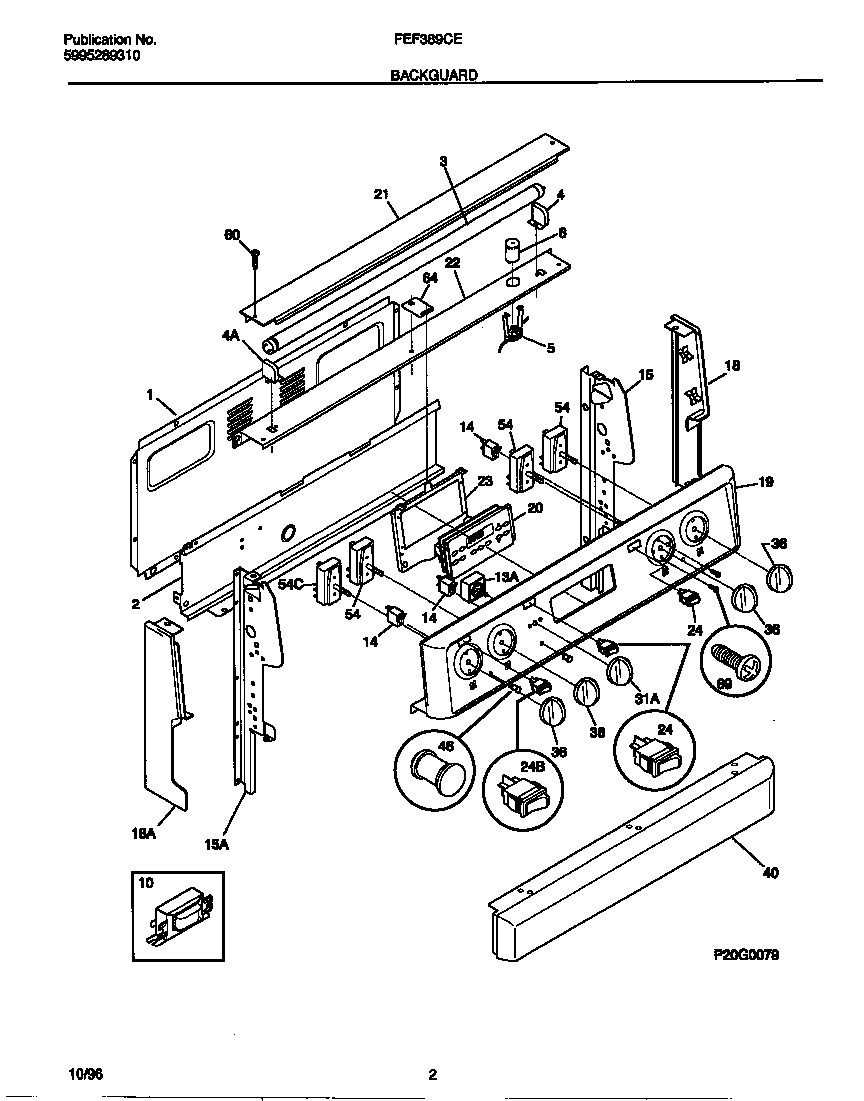

FEF389CETC 02 – BACKGUARD

FEF389CETC 02 – BACKGUARD

Written by

in

FEF389CETC 02 – BACKGUARD

Products

PositionProduct
*16202WCI 5303290188
*16200Screw,cup pt ,8-18 x 0.375 ,chrome
*16201WCI 5303288574
1WCI 316081601
2WCI 316015905
3BULB-FLUOR
4RECEPTACLE-FLU LT LH
4RECEPTACLE-FLU LT RH
5WCI 316053200
6STARTER-LAMP
10WCI 316099800
135304508926 Frigidaire Oven Temperature Control Switch
14CWCI 316082403
14A316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
14B316022503 Frigidaire Light Lamp P-1
15WCI 316049107
15WCI 316049106
18WCI 316026907
18WCI 316026906
19WCI 316024530
20WCI 5303935117
21WCI 316024903
22WCI 316059901
23WCI 316060003
24SWITCH-ROCKER,OVEN LIGHT ,ALMOND
24SWITCH-ROCKER, ALMOND, DUAL ELEMENT
31WCI 316095602
36KNOB-CONTROL, INFINITE SW, ALMOND, (4)
40PANEL-MANIFOLD
46318228310 Frigidaire Oven Lens
545304528972 Frigidaire Switch
545303935086 Frigidaire Oven Top Burner Switch Kit
60316021105 Frigidaire Oven Screw
64WCI 316062400
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
