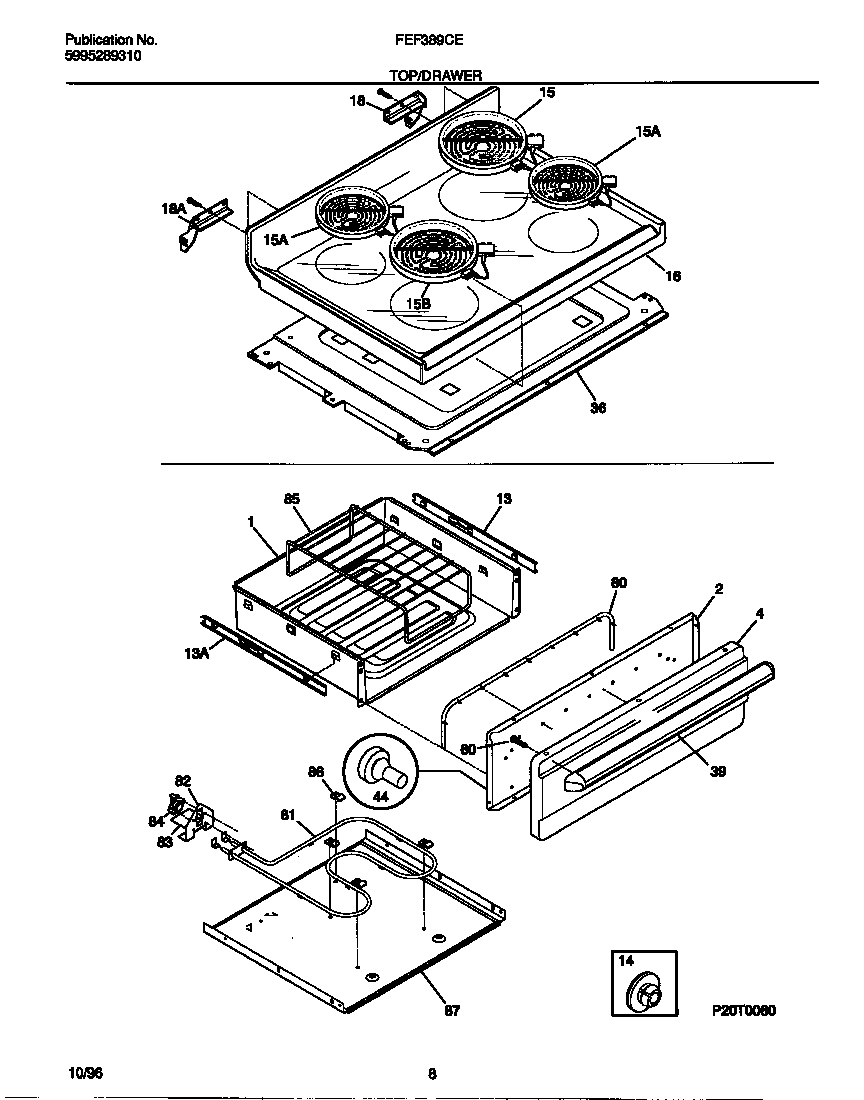

FEF389CETC 04 – TOP/DRAWER

FEF389CETC 04 – TOP/DRAWER

Written by

in

FEF389CETC 04 – TOP/DRAWER

Products

PositionProduct
*16212WCI 5309951550
*16207WCI 316078200
*16208Screw,cup pt ,8-18 x 0.375 ,chrome
*16210131243700 Frigidaire Screw
*16211WCI 5303288574
*16209WCI 5303280311
1WCI 316094601
2WCI 316092901
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
13WCI 316096501
13WCI 316096500
14WCI 3206216
15WCI 316027900
15BWCI 316028000
15WCI 316049701
15A318198817 Frigidaire Oven Element
16WCI 316035547
18BRIVET-POP, WARING-PLATE
18AHINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
36BWCI 316023301
36AWCI 316033610
36CWCI 316041001
39WCI 316026104
443131903 Frigidaire Door/Drawer Bumper
60316089500 Frigidaire Oven Screw
80WCI 316093000
81WCI 316093100
82316093200 Frigidaire Bracket
83WCI 316093300
84WCI 316093500
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091902
