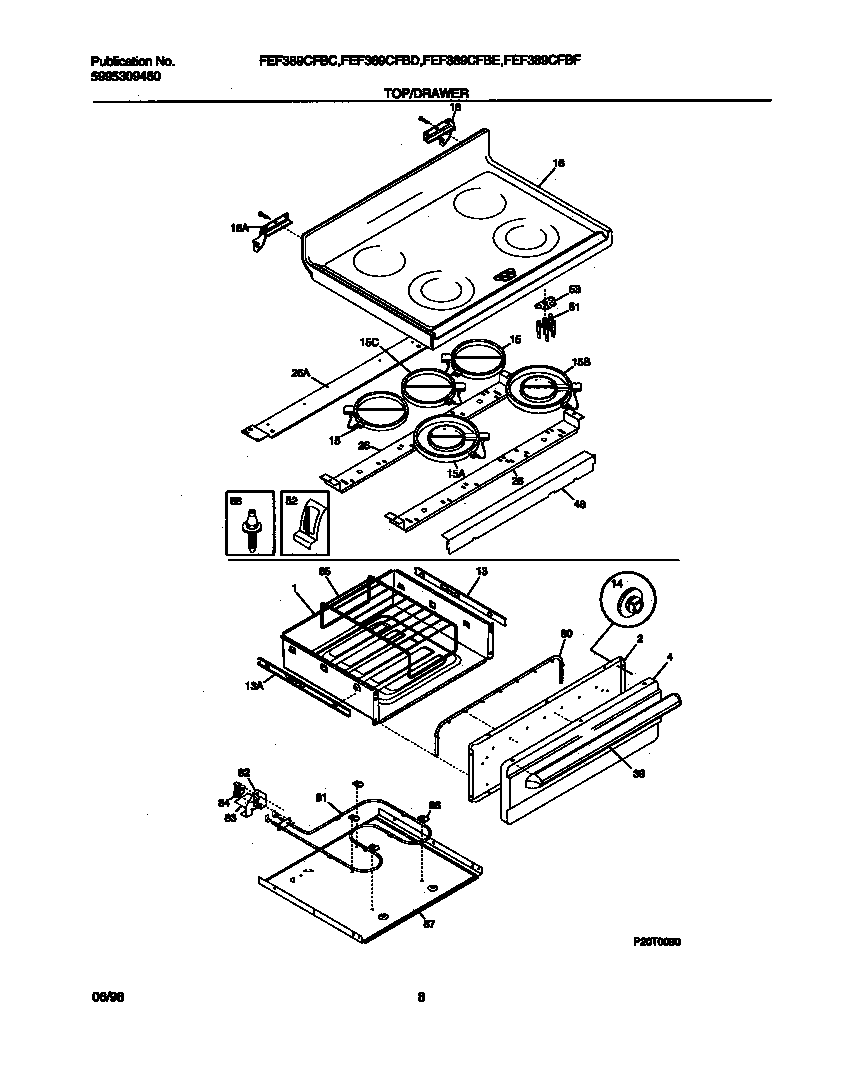

FEF389CFBD 04 – TOP/DRAWER

FEF389CFBD 04 – TOP/DRAWER

Written by

in

FEF389CFBD 04 – TOP/DRAWER

Products

PositionProduct
*50976RIVET-POP, WARING-PLATE
*50983WCI 316001745
*50982WCI 5309951550
*50981WCI 5303280311
*50980Clip,wiring harness ,green ,main top
*50978Screw,cup pt ,8-18 x 0.375 ,chrome
*50977316021105 Frigidaire Oven Screw
*50979316021109 Frigidaire Oven Screw
1WCI 316094601
2WCI 316092901
4WCI 316056203
13WCI 316105600
13318259506 Frigidaire Oven Glide
14WCI 3206216
15A318198817 Frigidaire Oven Element
15C389082702 Frigidaire Element
15BWCI 316049702
15WCI 316098200
16WCI 316098122
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
26WCI 316099201
26WCI 316099101
39WCI 316026105
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
51WCI 316105200
52Clip,element mtg
60BWCI 5303288574
60AWCI 5303280308
80WCI 316109700
81WCI 316093100
82316093200 Frigidaire Bracket
83WCI 316093300
84WCI 316093500
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87BWCI 316091902
87AWCI 316091900
88316099500 Frigidaire Oven Pin
