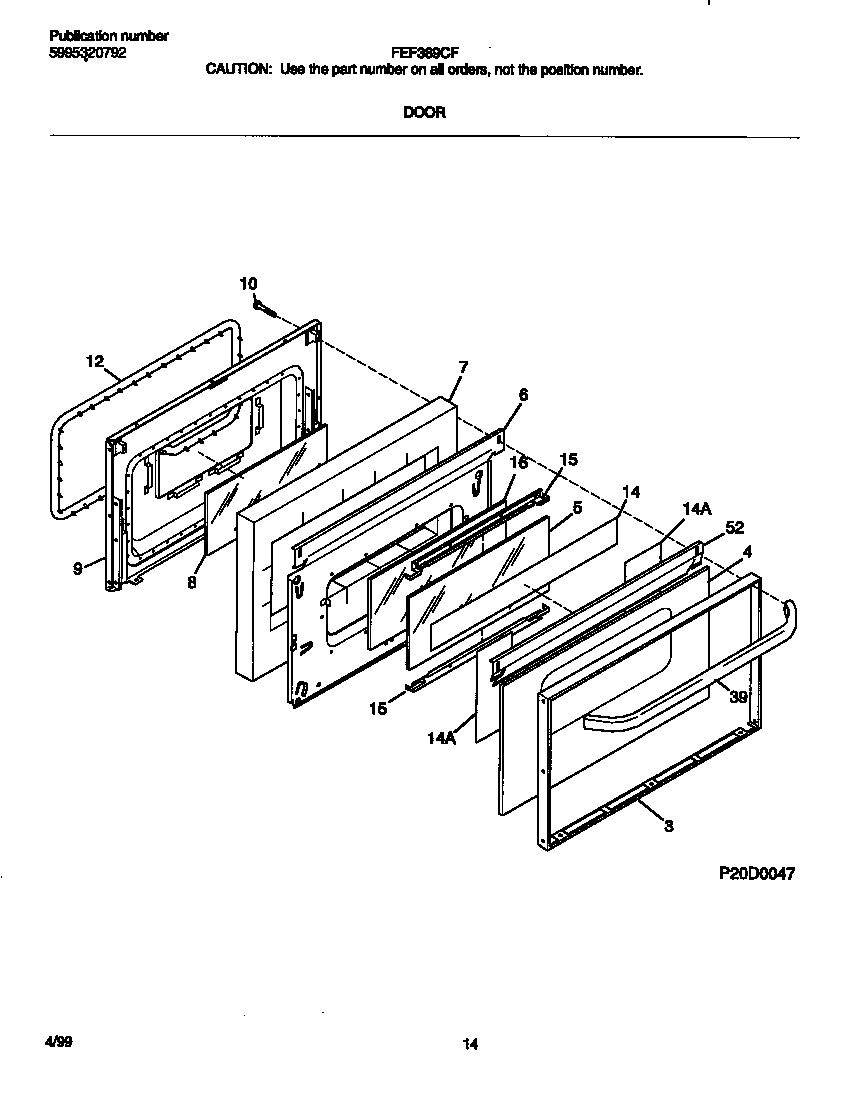

FEF389CFBK 05 – DOOR

FEF389CFBK 05 – DOOR

Written by

in

FEF389CFBK 05 – DOOR

Products

PositionProduct
*91743RIVET-POP, WARING-PLATE
*91745WCI 316065301
*91748316008401 Frigidaire Washer P-1
*91747WCI 5303280311
*91744316021109 Frigidaire Oven Screw
*917465303271648 Frigidaire Oven Screw
3WCI 316067802
4WCI 316089000
5WCI 316088700
6WCI 316088401
7WCI 316076403
8GLASS-OVEN DOOR, AIRWASH
9WCI 316066610
10WCI 5303280308
125303131601 Frigidaire Oven Seal
14REFLECTOR, ALUMINUM FOIL
145303208655 Frigidaire Reflector Assembly
15WCI 316081403
16WCI 316085701
39WCI 316091117
52WCI 316081303
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
