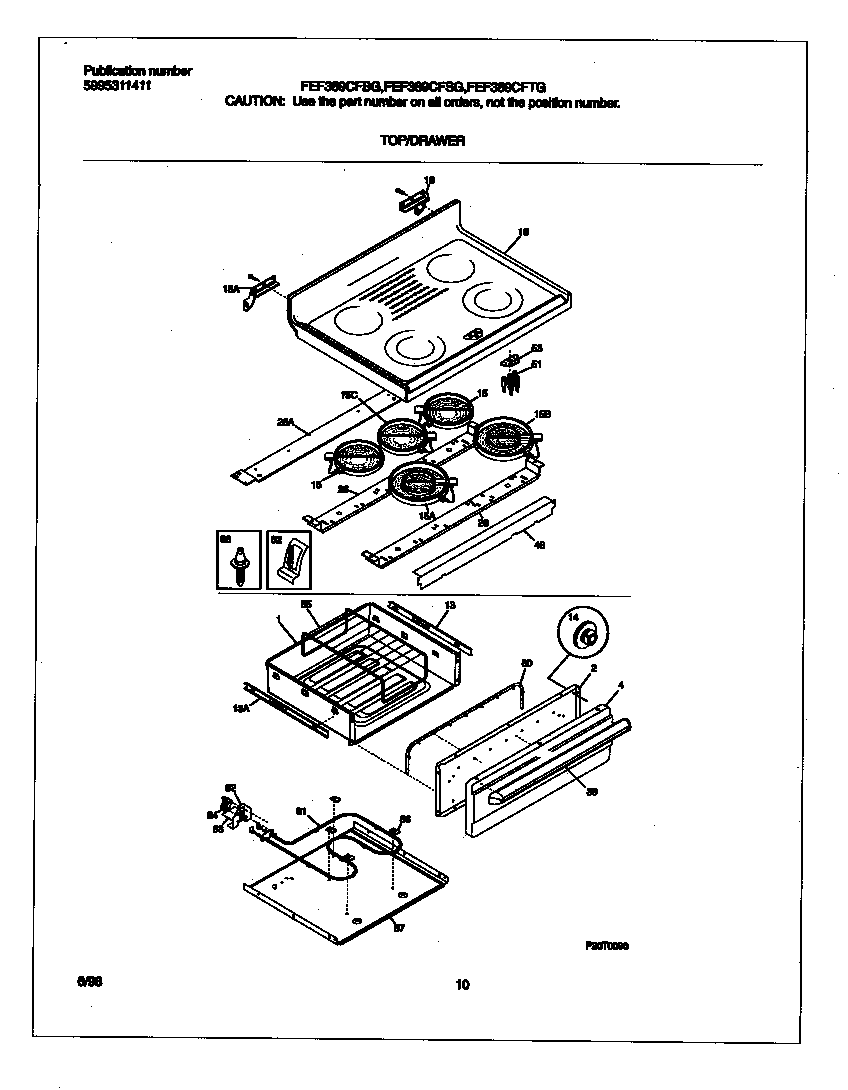

FEF389CFSG 04 – TOP/DRAWER

Products

PositionProduct
*90535RIVET-POP, WARING-PLATE
*90542WCI 5309951550
*90541WCI 5303280311
*90540Clip,wiring harness ,green ,main top
*90536Screw,cup pt ,8-18 x 0.375 ,chrome
*90538316021109 Frigidaire Oven Screw
*90543WCI 316001745
1WCI 316094601
2WCI 316092901
4WCI 316056201
10WCI 5303280308
13WCI 316105600
13318259506 Frigidaire Oven Glide
14WCI 3206216
15WCI 316098200
15318198817 Frigidaire Oven Element
15389082702 Frigidaire Element
15WCI 316049702
16WCI 316098120
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26WCI 316099101
26WCI 316099201
39WCI 316026106
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
51WCI 316105200
52Clip,element mtg
60A316021105 Frigidaire Oven Screw
60BWCI 5303288574
80WCI 316109700
81WCI 316093100
82316093200 Frigidaire Bracket
83WCI 316093300
84WCI 316093500
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091900
88316099500 Frigidaire Oven Pin
