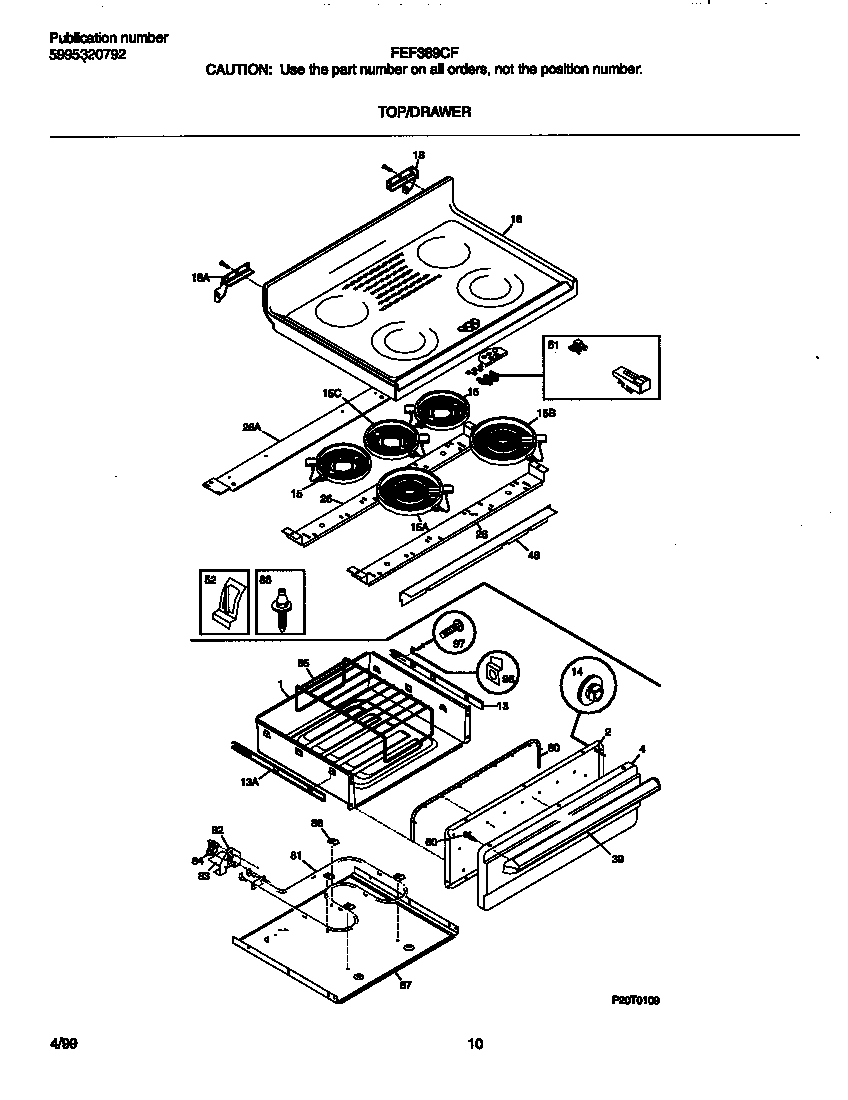

FEF389CFSK 04 – TOP/DRAWER

FEF389CFSK 04 – TOP/DRAWER

Written by

in

FEF389CFSK 04 – TOP/DRAWER

Products

PositionProduct
*91732WCI 316001760
*91741WCI 5303280311
*91739Clip,wiring harness ,green ,main top
*91733WCI 316001917
*91735Screw,cup pt ,8-18 x 0.375 ,chrome
*91736316021109 Frigidaire Oven Screw
*91740WCI 316112101
*91734WCI 316001918
1WCI 316115901
2WCI 316092901
4WCI 316056201
9WCI 316073800
10BWCI 5303280308
10AWCI 3205234
13318259507 Frigidaire Oven Glide
13318259506 Frigidaire Oven Glide
14WCI 3206216
15BWCI 316049702
15A318198817 Frigidaire Oven Element
15389082702 Frigidaire Element
15WCI 316098201
16WCI 316098120
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
26WCI 316099201
26WCI 316099101
39WCI 316026106
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
51WCI 316105200
52Clip,element mtg
60316021105 Frigidaire Oven Screw
80WCI 316109700
81WCI 316093100
82316093200 Frigidaire Bracket
83WCI 316093300
84WCI 316093500
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091900
88316099500 Frigidaire Oven Pin
96WCI 316122000
97WCI 316003802
