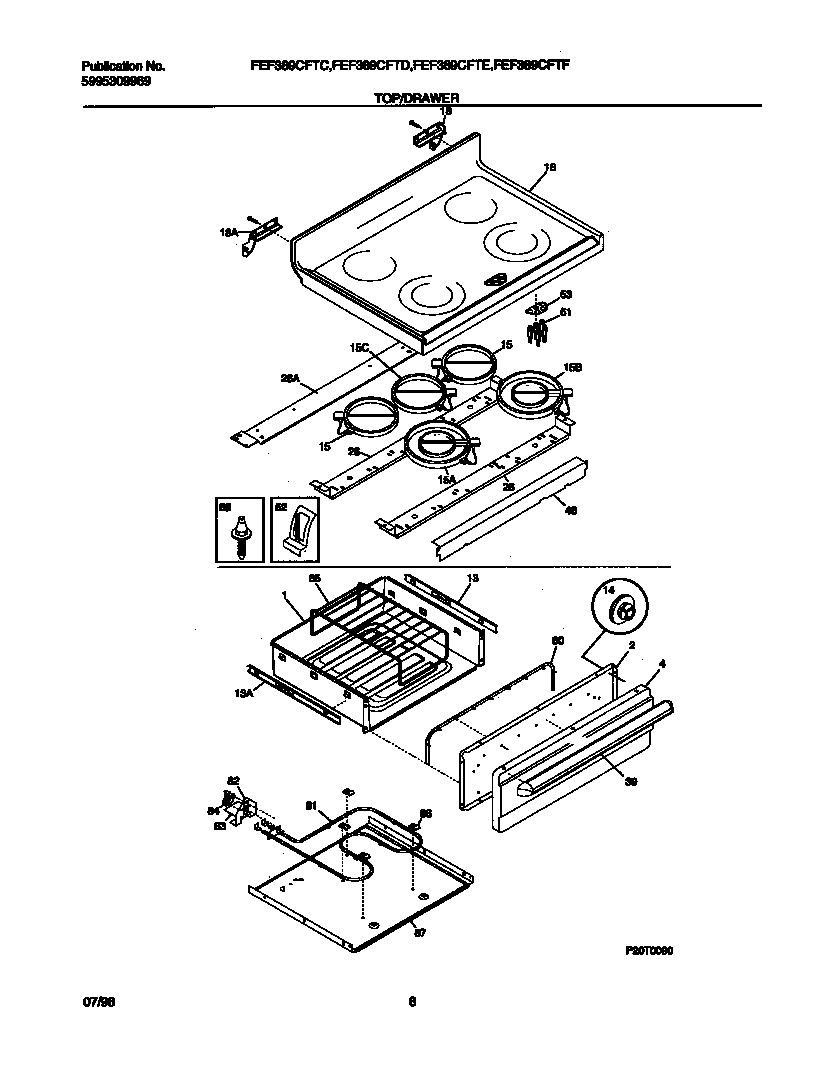

FEF389CFTC 04 – TOP/DRAWER

FEF389CFTC 04 – TOP/DRAWER

Written by

in

FEF389CFTC 04 – TOP/DRAWER

Products

PositionProduct
*22176RIVET-POP, WARING-PLATE
*22181WCI 5309951550
*22182WCI 316001745
*22180WCI 5303280311
*22178316021109 Frigidaire Oven Screw
*22177Screw,cup pt ,8-18 x 0.375 ,chrome
*22179Clip,wiring harness ,green ,main top
1WCI 316094601
4WCI 316056202
10WCI 5303280308
13WCI 316105600
13318259506 Frigidaire Oven Glide
14WCI 3206216
15AWCI 316049702
15318198817 Frigidaire Oven Element
15B389082702 Frigidaire Element
15WCI 316098200
16WCI 316098121
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26WCI 316099201
26WCI 316099101
39WCI 316026107
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
51WCI 316105200
52Clip,element mtg
60A316021105 Frigidaire Oven Screw
60BWCI 5303288574
80WCI 316093000
81WCI 316093100
82316093200 Frigidaire Bracket
83WCI 316093300
84WCI 316093500
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091900
88316099500 Frigidaire Oven Pin
