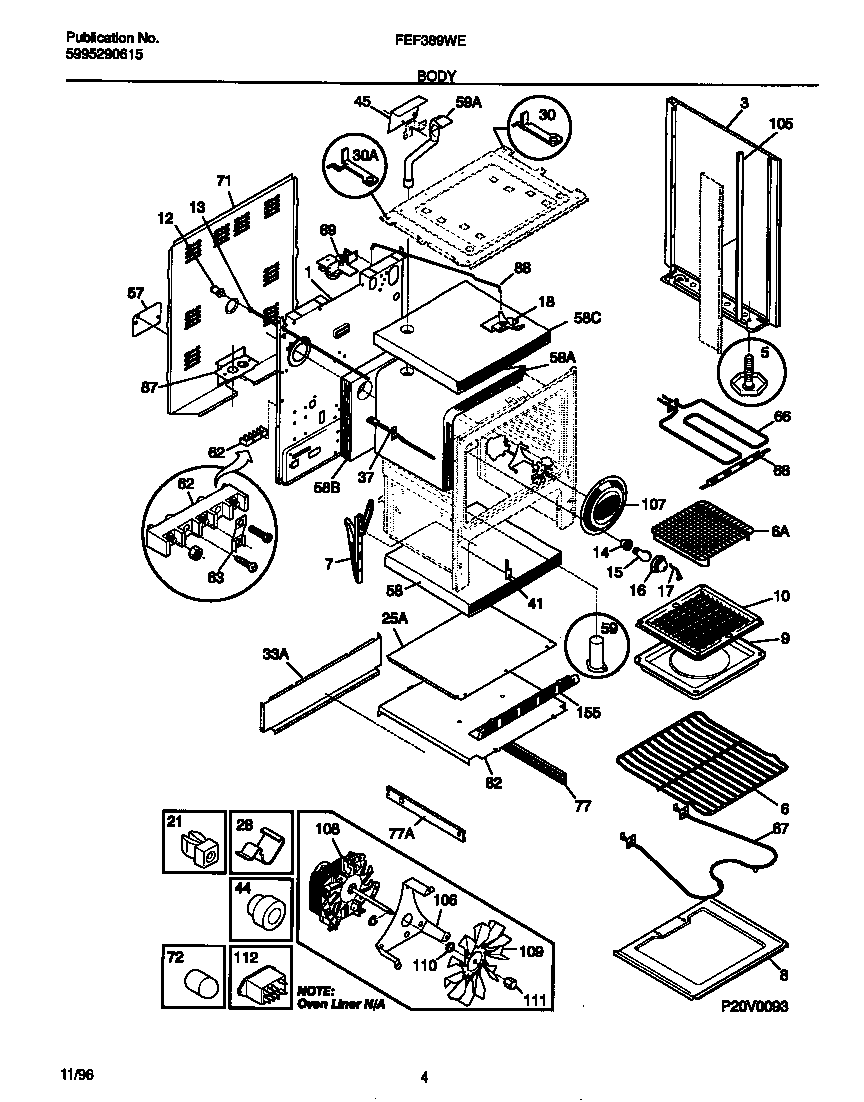

FEF389WECA 03 – BODY

Products

PositionProduct
*71849WCI 316001345
*71847Screw,cup pt ,8-18 x 0.375 ,chrome
*718513205821 Frigidaire Clip
*718453203550 Frigidaire Oven Plug
*71850SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*71848316205500 Frigidaire Oven Nut
1WCI 316080801
3WCI 316081003
3WCI 316081002
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
5BWCI 3934058
5C316116000 Frigidaire Screw
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5ASCREW-LEVELING
6WCI 316085400
65304531722 Frigidaire Rack
7WCI 316007005
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 316092401
28Clip,wiring harness ,green ,main top
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
33WCI 316095301
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066101
57WCI 316081101
58316047707 Frigidaire Insulation
58316054202 Frigidaire Insulation
58INSULATION, OVEN TOP
58316403803 Frigidaire Insulation
59WCI 316023600
59AWCI 316073602
59BBRACKET-VENT TUBE (NOT ILLUSTRATED)
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
77RAIL-DRAWER,LH,OUTER
77Rail,drawer ,RH outer
82SHIELD, OVEN BOTTOM
87WCI 316081201
88WCI 316026400
89AWCI 316028102
89BINSULATOR, LATCH MOTOR (NOT ILLUSTRATED)
105WCI 316071900
106WCI 316026601
107316026701 Frigidaire Oven Cover Assembly
108WCI 316049401
108WCI 316021106
109WCI 316054500
110WCI 316054600
111WCI 316054700
112WCI 316082700
155WCI 316095201
