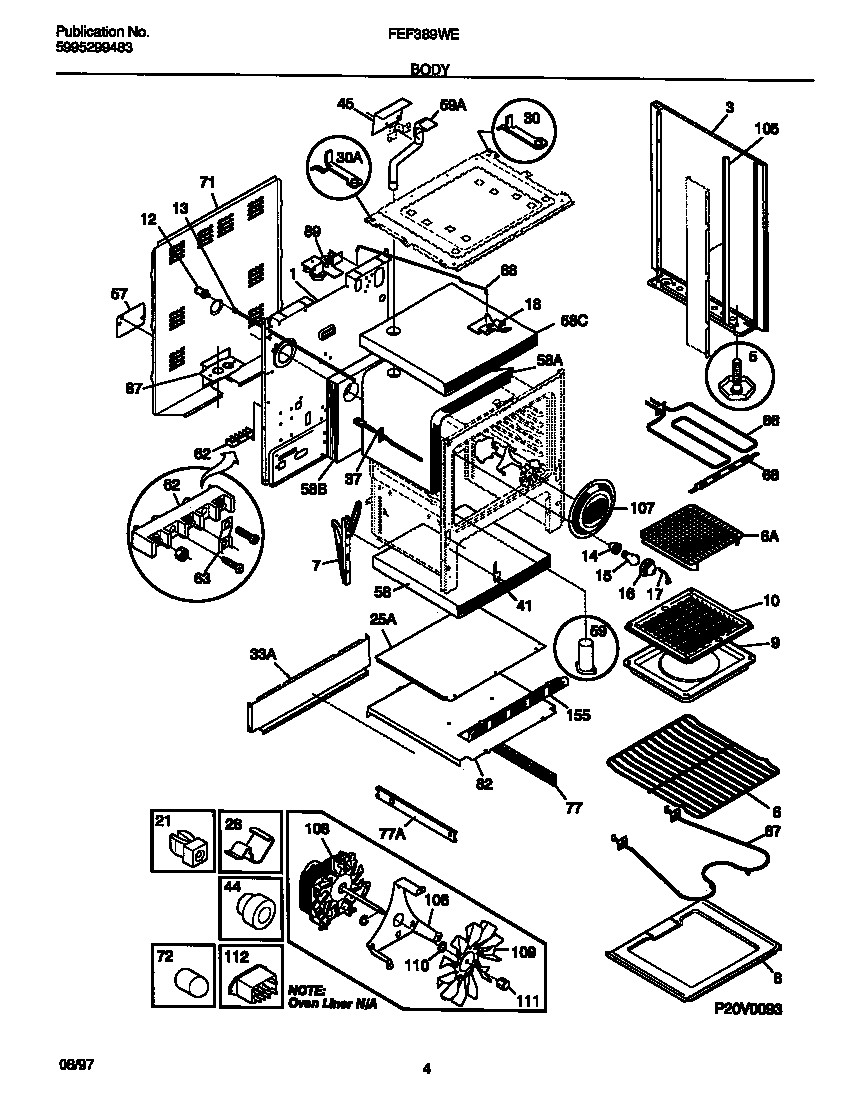

FEF389WECE 03 – BODY

FEF389WECE 03 – BODY

Written by

in

FEF389WECE 03 – BODY

Products

PositionProduct
*46768316205500 Frigidaire Oven Nut
*46767SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*46766Screw,cup pt ,8-18 x 0.375 ,chrome
*467653203550 Frigidaire Oven Plug
*46769WCI 316001382
1WCI 316080801
3WCI 316081027
3WCI 316081026
5BWCI 3934058
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C316116000 Frigidaire Screw
5ASCREW-LEVELING
6WCI 316085400
65304531722 Frigidaire Rack
7WCI 316007005
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 316092400
28CLIP-WIRE
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
33WCI 316095301
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066100
57WCI 316081101
58INSULATION, OVEN TOP
58WCI 316054201
58316403803 Frigidaire Insulation
58INSULATION, OVEN WRAPPER
59AWCI 316073602
59BBRACKET-VENT TUBE (NOT ILLUSTRATED)
59WCI 316023600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
77RAIL-DRAWER,LH,OUTER
77Rail,drawer ,RH outer
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
88WCI 316026400
89WCI 316028103
106WCI 316026600
107316026701 Frigidaire Oven Cover Assembly
108BSCREW,8-18 X 1.500
108AWCI 316090500
109WCI 316090600
110WCI 316090700
111WCI 316090800
112WCI 316082700
155WCI 316095201
