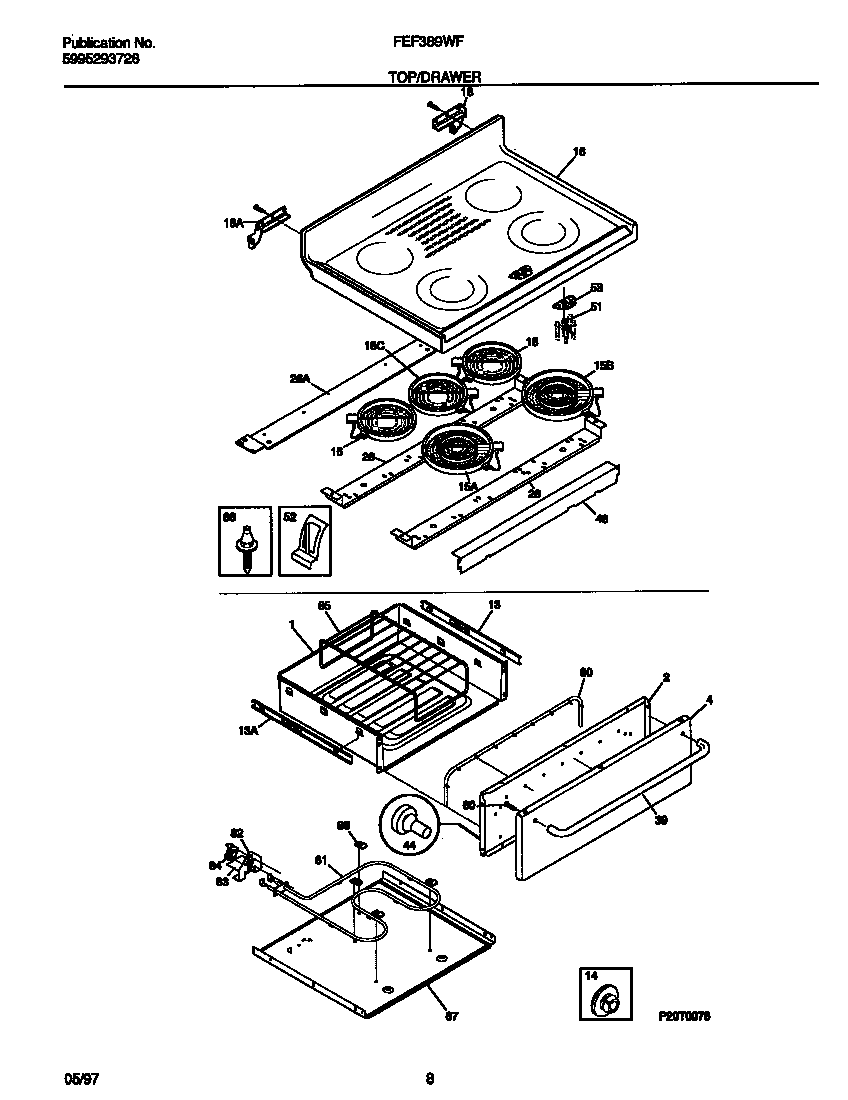

FEF389WFCA 04 – TOP/DRAWER

FEF389WFCA 04 – TOP/DRAWER

Written by

in

FEF389WFCA 04 – TOP/DRAWER

Products

PositionProduct
*88492RIVET-POP, WARING-PLATE
*88494131243700 Frigidaire Screw
*88496WCI 5309951550
*88497WCI 218490900
*88495WCI 5303288574
*88498WCI 316001735
*88493Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316094601
2WCI 316092901
4AWCI 316079401
4BSCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
13WCI 316096501
13WCI 316096500
14WCI 3206216
15WCI 316049702
15389082702 Frigidaire Element
15318198817 Frigidaire Oven Element
15WCI 316098200
16WCI 316098124
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
26WCI 316099201
26WCI 316099101
39WCI 316079500
443131903 Frigidaire Door/Drawer Bumper
51WCI 316098300
52Clip,element mtg
60WCI 5303280311
80WCI 316093000
81WCI 316093100
82316093200 Frigidaire Bracket
83WCI 316093300
84WCI 316093500
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091902
88316099500 Frigidaire Oven Pin
