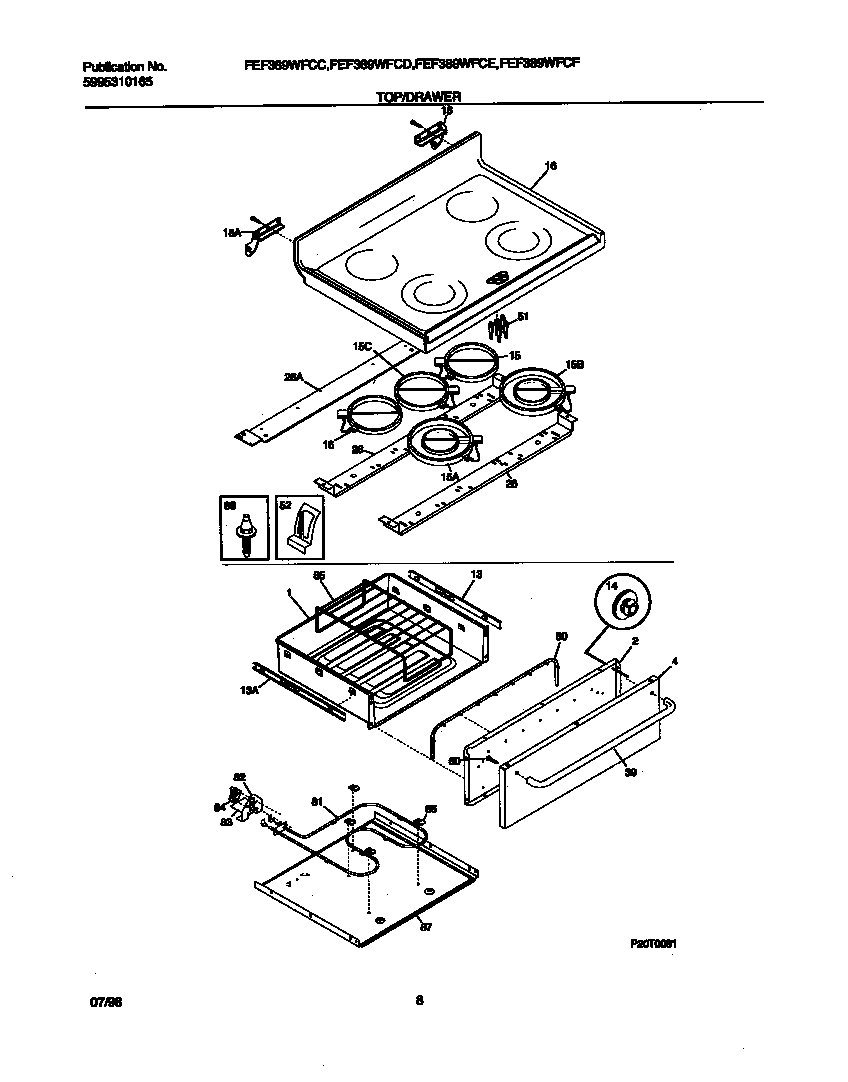

FEF389WFCC 04 – TOP/DRAWER

FEF389WFCC 04 – TOP/DRAWER

Written by

in

FEF389WFCC 04 – TOP/DRAWER

Products

PositionProduct
*42897RIVET-POP, WARING-PLATE
*42903WCI 5309951550
*42902WCI 5303280311
*42898WCI 218490900
*42901Clip,wiring harness ,green ,main top
*42899WCI 316001743
*42900Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316094601
2WCI 316092901
4WCI 316079401
13WCI 316105600
13318259506 Frigidaire Oven Glide
14WCI 3206216
15318198817 Frigidaire Oven Element
15B389082702 Frigidaire Element
15WCI 316098200
15AWCI 316049702
16WCI 316098122
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26WCI 316099101
26WCI 316099201
39WCI 316079500
443131903 Frigidaire Door/Drawer Bumper
51WCI 316105200
52Clip,element mtg
60A316021105 Frigidaire Oven Screw
60BWCI 5303288574
80WCI 316093000
81WCI 316093100
82316093200 Frigidaire Bracket
83WCI 316093300
84WCI 316093500
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091900
88316099500 Frigidaire Oven Pin
