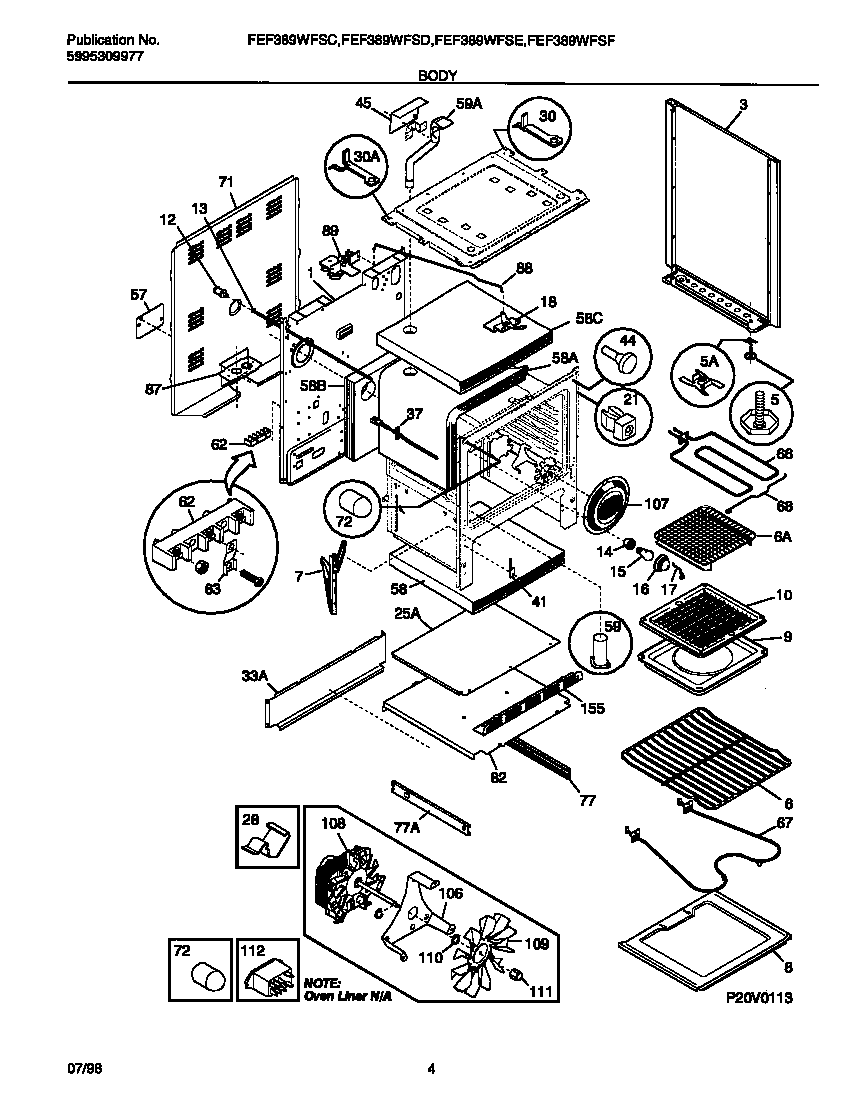

FEF389WFSD 03 – BODY

FEF389WFSD 03 – BODY

Written by

in

FEF389WFSD 03 – BODY

Products

PositionProduct
*26568316205500 Frigidaire Oven Nut
*26575SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*26570WCI 316001382
*26573316116000 Frigidaire Screw
*26572WCI 3934058
*265743203010 Frigidaire Clip
*26569COVER-LIGHT/SWITCH ROD
*26567Clip,wiring harness ,green ,main top
*26566WCI 316026800
*26576BRACKET-VENT TUBE (NOT ILLUSTRATED)
*26571WCI 316081029
*265643203550 Frigidaire Oven Plug
*26565Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316080804
3WCI 316081028
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6WCI 316085400
65304531722 Frigidaire Rack
7WCI 316007005
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 316092400
28CLIP-WIRE
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
33WCI 316095301
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066100
57WCI 316081101
58INSULATION, OVEN WRAPPER
58WCI 316054201
58INSULATION, OVEN TOP
58316403803 Frigidaire Insulation
59WCI 316073602
59WCI 316023600
60316021105 Frigidaire Oven Screw
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
77316105501 Frigidaire P-1 Glide
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
88WCI 316026400
89WCI 316028103
105WCI 316071901
106WCI 316026600
107316026701 Frigidaire Oven Cover Assembly
108ASCREW,8-18 X 1.500
108BWCI 316090500
109WCI 316090600
110WCI 316090700
111WCI 316090800
112WCI 316082700
155WCI 316095201
