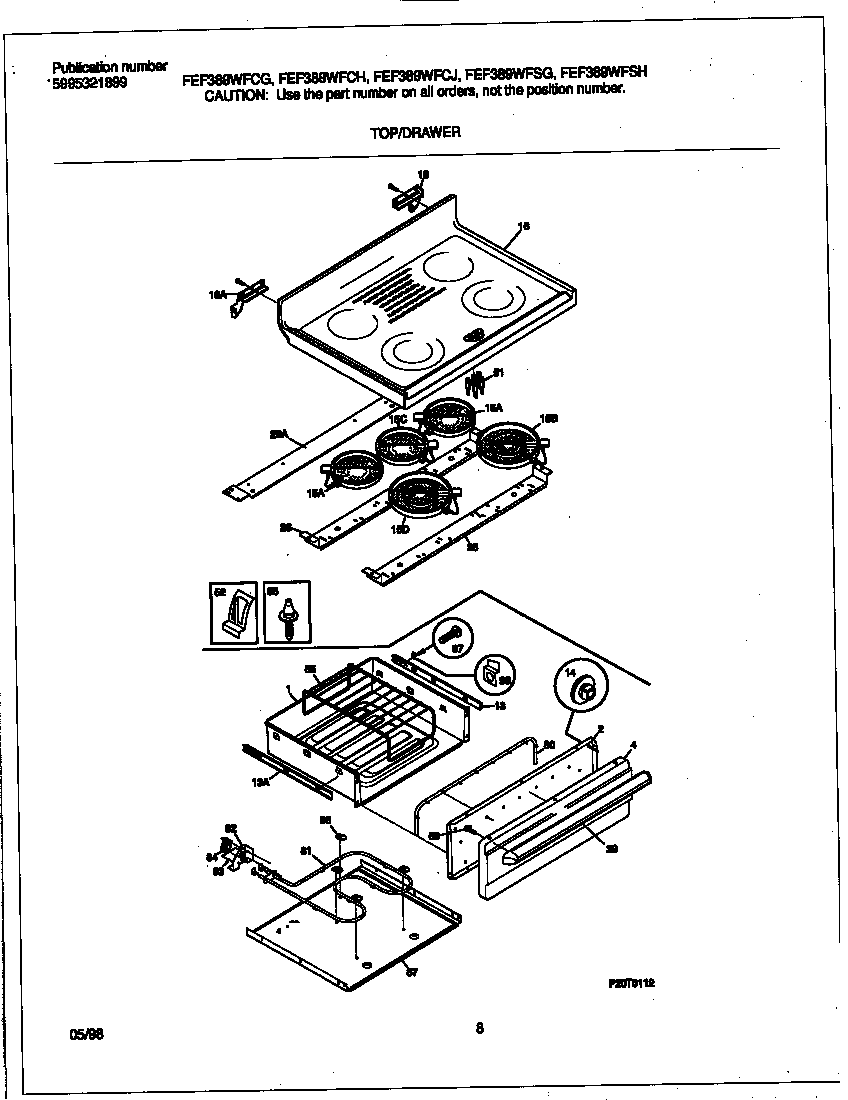

FEF389WFSG 04 – TOP/DRAWER

FEF389WFSG 04 – TOP/DRAWER

Written by

in

FEF389WFSG 04 – TOP/DRAWER

Products

PositionProduct
*27057WCI 316001743
*27056WCI 218490900
*27058WCI 316001917
*27062Clip,wiring harness ,green ,main top
*27059WCI 316001918
*27060Screw,cup pt ,8-18 x 0.375 ,chrome
*27061316021109 Frigidaire Oven Screw
*27063WCI 316112101
*27064WCI 5303280311
1WCI 316115901
2WCI 316092901
4WCI 316079401
13RAIL-DRAWER,LH,OUTER
13Rail,drawer ,RH outer
14WCI 3206216
15318198817 Frigidaire Oven Element
15WCI 316098200
15WCI 316049702
15389082702 Frigidaire Element
16WCI 316098120
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
26WCI 316099101
26WCI 316099201
39WCI 316079500
51WCI 316105200
52Clip,element mtg
60316021105 Frigidaire Oven Screw
80WCI 316109700
81WCI 316093100
82316093200 Frigidaire Bracket
83WCI 316093300
84WCI 316093500
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091900
88316099500 Frigidaire Oven Pin
