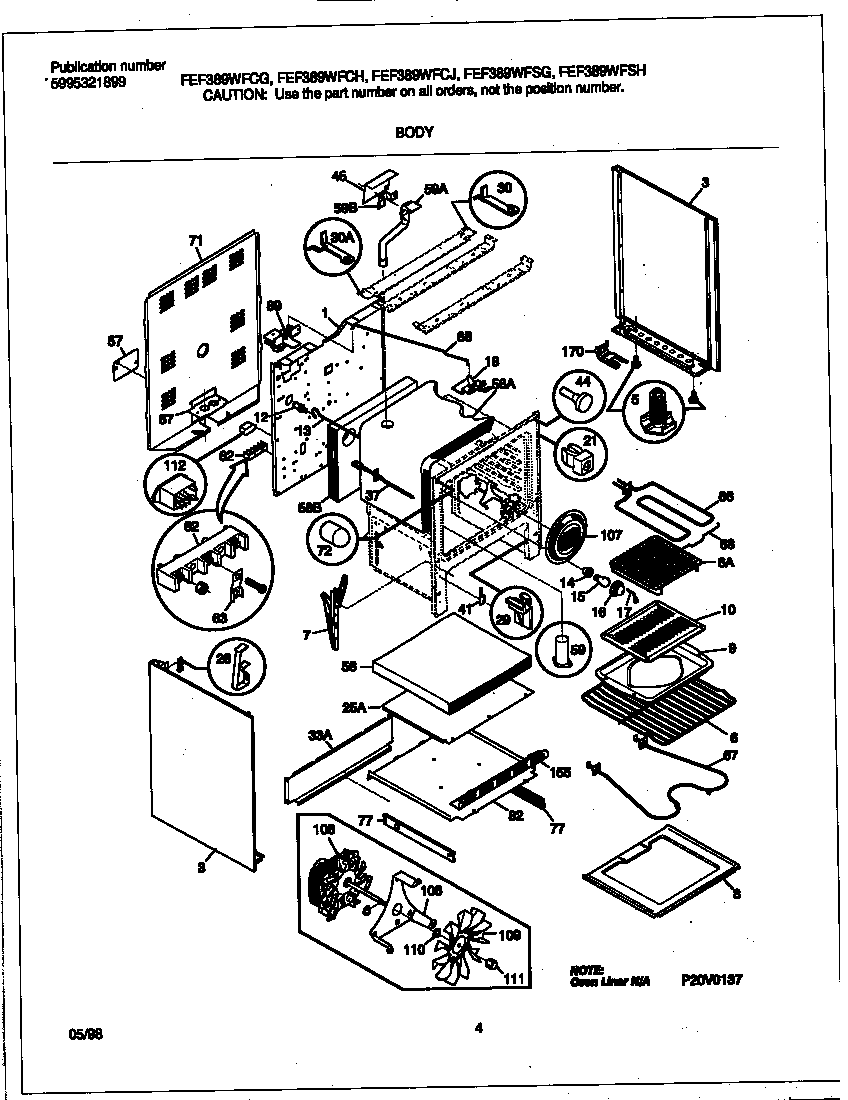

FEF389WFSH 03 – BODY

Products

PositionProduct
*27052316205500 Frigidaire Oven Nut
*27053WCI 316001382
*27054SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*27051Clip,wiring harness ,green ,main top
*27055BRACKET-VENT TUBE (NOT ILLUSTRATED)
*27050Screw,cup pt ,8-18 x 0.375 ,chrome
*270493203550 Frigidaire Oven Plug
1WCI 316080804
3BWCI 316081035
3AWCI 316081034
5WCI 316107300
65304531722 Frigidaire Rack
6WCI 316085400
7WCI 316007005
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 316092400
28CLIP-WIRE
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
33WCI 316095301
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066100
57WCI 316081101
58316403803 Frigidaire Insulation
58INSULATION, OVEN WRAPPER
58WCI 316054201
59WCI 316023600
59WCI 316073602
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
77316105501 Frigidaire P-1 Glide
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
88WCI 316026400
89WCI 316028107
106WCI 316026600
107316026701 Frigidaire Oven Cover Assembly
108ASCREW,8-18 X 1.500
108BWCI 316090500
109WCI 316090600
110WCI 316090700
111WCI 316090800
112WCI 316082700
155WCI 316095201
170B316116000 Frigidaire Screw
170A316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
