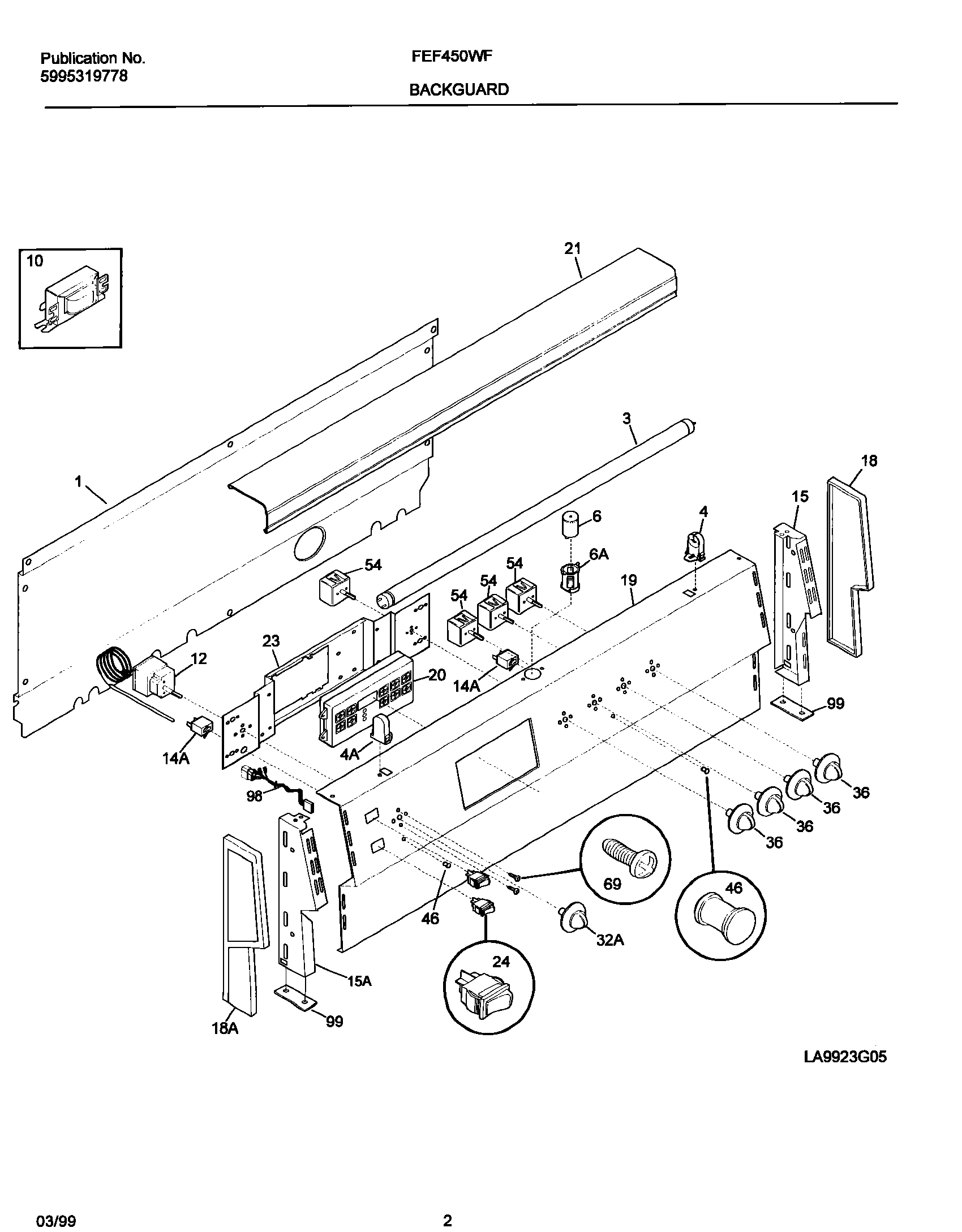

FEF450WFDB 03 – BACKGUARD

FEF450WFDB 03 – BACKGUARD

Written by

in

FEF450WFDB 03 – BACKGUARD

Products

PositionProduct
NISCREW,TRUSS HEAD,8-18 X 0.375
NIWCI 5303311318
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318052086
1SHIELD-BACKGUARD, REAR WALL
3LAMP-FLUORESCENT, BACKGUARD
4RECEPTACLE-LAMP, RH
6ASOCKET-STARTER
6WCI 5308068062
10WCI 318122802
12318183000 Frigidaire Thermostat
14ALIGHT-LAMP/INDICATOR, OVEN
15AWCI 5303304001
15WCI 5303304000
18END CAP, ALMOND, RH
18AEND CAP, ALMOND, LH
19WCI 318005712
20WCI 318013006
21WCI 318051303
23WCI 318015006
245304527841 Frigidaire Oven Rocker Switch (Black)
32AWCI 318016325
36Knob,control ,black
46LENS (2)
54WCI 318120501
695303323137 Frigidaire Oven Screw
98WCI 318092406
99WCI 5303304544
