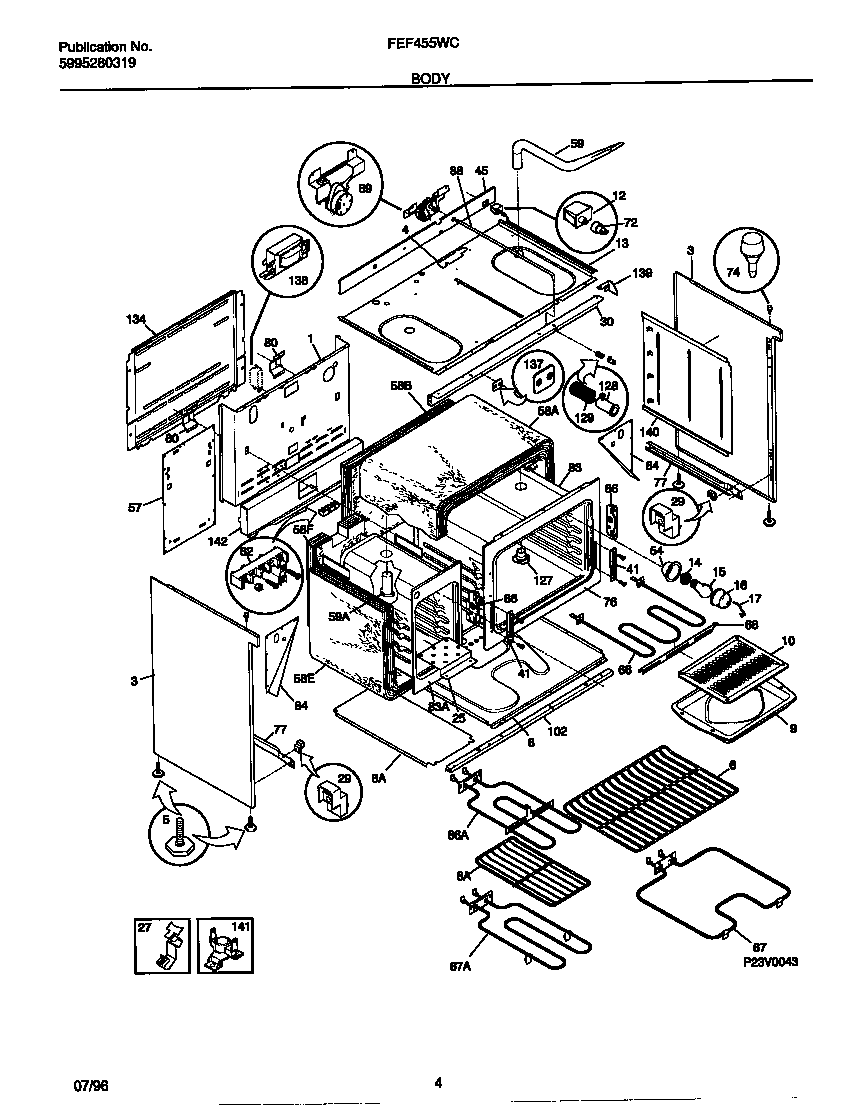

FEF455WCBB 03 – BODY

FEF455WCBB 03 – BODY

Written by

in

FEF455WCBB 03 – BODY

Products

PositionProduct
*711255303307980 Frigidaire Oven Screw
*711215303211311 Frigidaire Refrigerator Screw
*71120PANEL – WIRE COVER
*71122WCI 3051810
*71124WCI 5303304030
1WCI 5303310527
3AWCI 3201579
3BWCI 3201580
4AWCI 318073703
4BPANEL, BOTTOM, LH
5BWCI 3203575
5CWCI 3203576
6WCI 08014191
6318025314 Frigidaire Oven Rack
8WCI 5303311141
8WCI 318071900
9WCI 08014183
9WCI 5303317977
10WCI 5303317976
12ASWITCH – DOOR
12BWCI 5301314211
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
25Panel,heat shield ,oven bottom
27BRACKET-THERMO BULB (2)
29GUIDE-DRAWER FRNT (2)
30WCI 318023903
41WCI 5303310526
45WCI 318057400
54AWCI 5303310514
54BWCI 3051511
57WCI 318055700
58INSUL – WRAP SM OVEN
58WCI 5301167905
58WCI 5303310538
58INSULATION WRAPPER
59WCI 318072501
59WCI 3017402
62A5304409888 Frigidaire Oven Terminal Block with Hardware
62BWCI 5303310517
62C316205500 Frigidaire Oven Nut
66318255605 Frigidaire Oven Broil Element Range
66ELEMENT-BROIL SM OV
67BAKE ELEMENT
67318255201 Frigidaire Oven Small Bake Element
68WCI 5303307563
72WCI 08007444
74BUMPER – COOKTOP (4)
76WCI 318056001
77ARAIL-DRAWER RH
77BRAIL-DRAWER LH
80WCI 5303301261
83WCI 318089200
83WCI 318089600
84BWCI 3204823
84AWCI 3204822
86WCI 5303310524
88WCI 5303311160
89WCI 5303310540
102Channel,oven support ,front
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
134WCI 5303310515
137WCI 3204318
138WCI 5301308270
139WCI 318042900
140WCI 318071300
141THERMOSTAT-SAFETY
142WCI 5303310541
