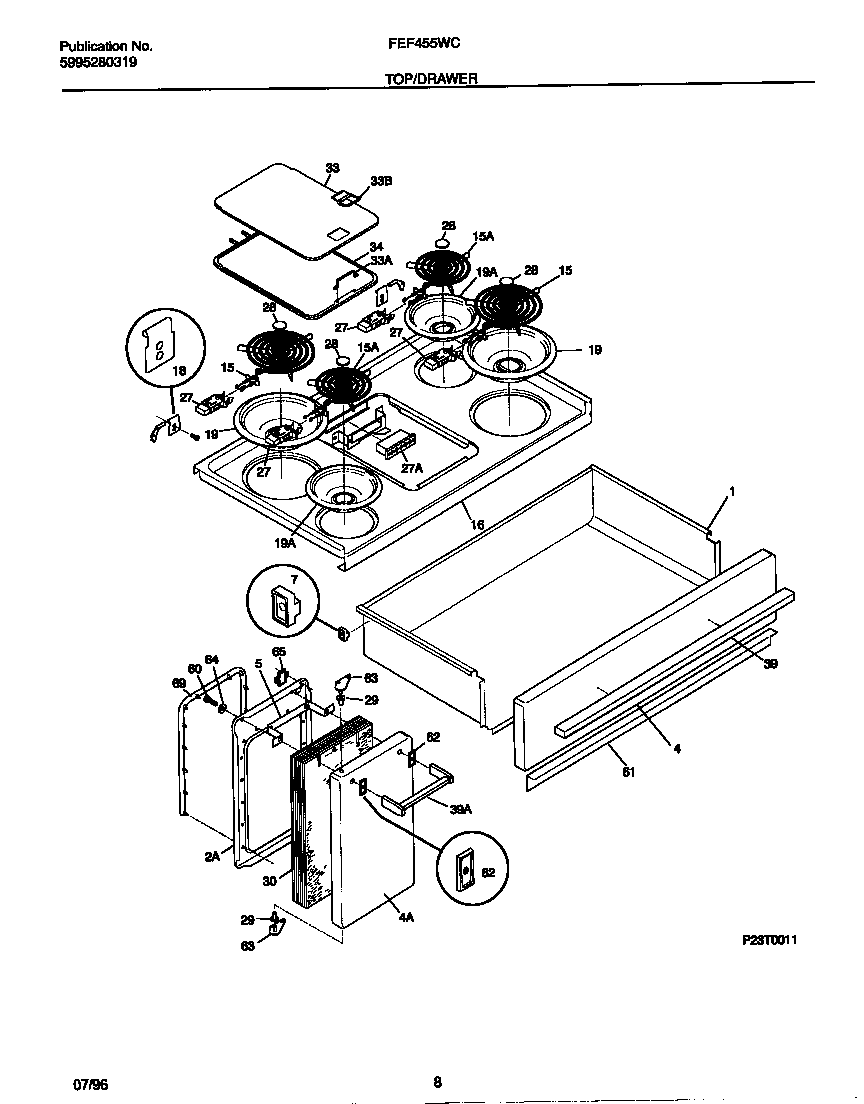

FEF455WCBB 04 – TOP/DRAWER

FEF455WCBB 04 – TOP/DRAWER

Written by

in

FEF455WCBB 04 – TOP/DRAWER

Products

PositionProduct
*71126RIVET-POP, WARING-PLATE
1DRAWER-UTILITY
2Liner,inner door ,small oven
4WCI 3201577
4WCI 318009301
5WCI 318014500
7GUIDE (2)
15316442301 Frigidaire Oven 8 Coil Element 2600W
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16WCI 5303293761
18C08002868 Frigidaire 0 Screw Assembly
18BWCI 5301315631
18AWCI 3051658
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
27AWCI 5303292139
27BTERMINAL (NOT ILLUSTRATED)
27CWCI 5303311332
275303935058 Frigidaire Oven Burner Receptacle Kit
28WCI 5303301461
29SPACER-HINGE PIN (2)
30WCI 5301311649
33WCI 5301313051
33WCI 3201527
33WCI 08005351
34WCI 5301167935
39WCI 318040601
39WCI 3201576
605303310510 Frigidaire Oven Screw
61WCI 318107700
62BSCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
62AWCI 3201572
63BWCI 318024503
63AWCI 318024501
645300809968 Frigidaire Dishwasher P-1 Washer
65LATCH-MAGNETIC
69WCI 318053300
