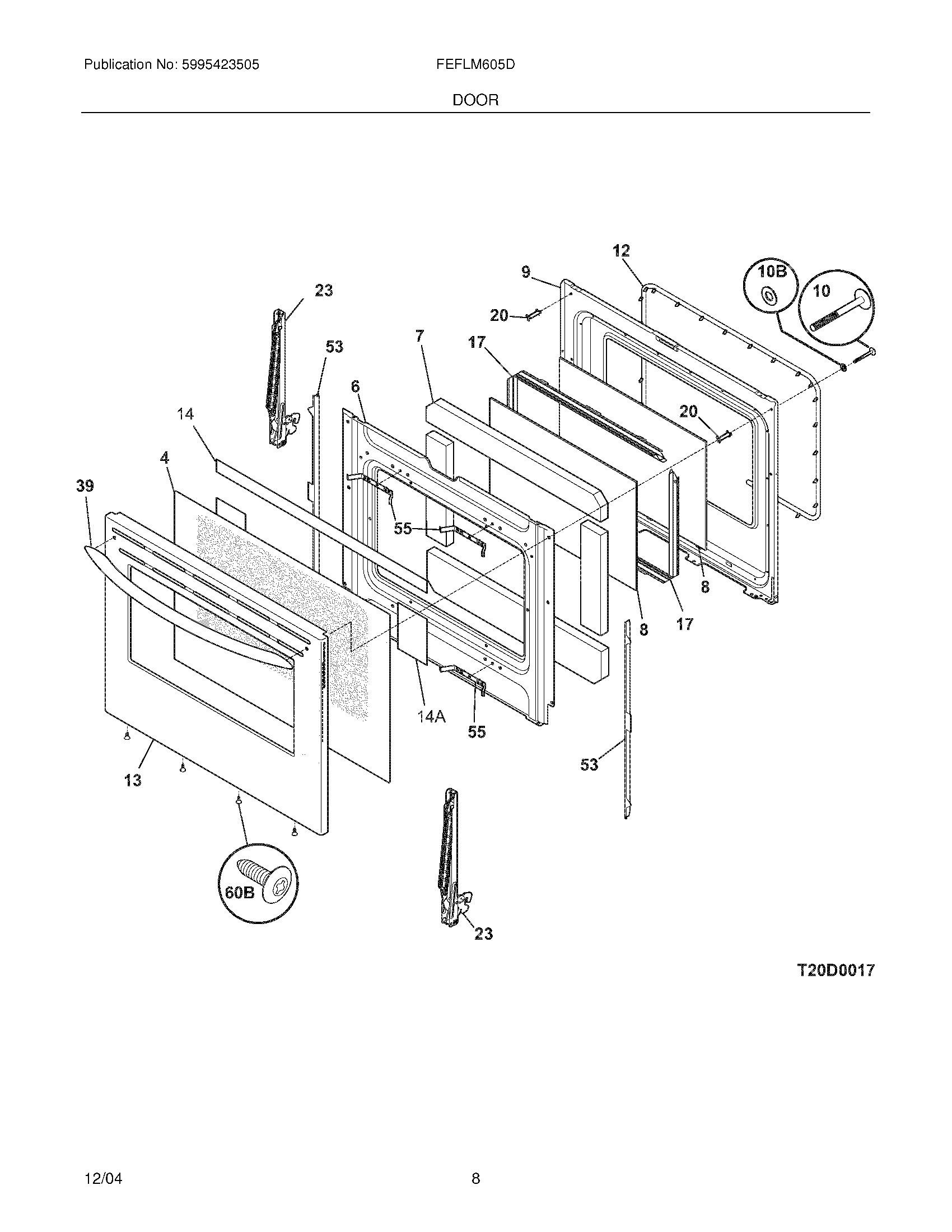

FEFLM605DCB 09 – DOOR

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NI	WCI 316431100
NI	WCI 316279700
NI	316418900 Frigidaire Oven Screw
NI	316433603 Frigidaire Oven Label
NI	5303271648 Frigidaire Oven Screw
4	WCI 316408503
6	316406328 Frigidaire Shield
7	316405600 Frigidaire Insulation
8	5304503232 Frigidaire Oven Inner Door Glass
9	WCI 316423701
10B	316008401 Frigidaire Washer P-1
10	SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
12	316405000 Frigidaire Oven Seal
13	WCI 316407900
14	316574603 Frigidaire Oven FOIL
14A	316574601 Frigidaire Oven FOIL
17	5304504811 Frigidaire Glass Spacer
20	WCI 316408600
23	5304445530 Frigidaire Hinge Kit
39	316246105 Frigidaire Oven Handle
53	5304532042 Frigidaire Shield-Filler Door
55	316408300 Frigidaire Oven Bracket
60B	316021109 Frigidaire Oven Screw
