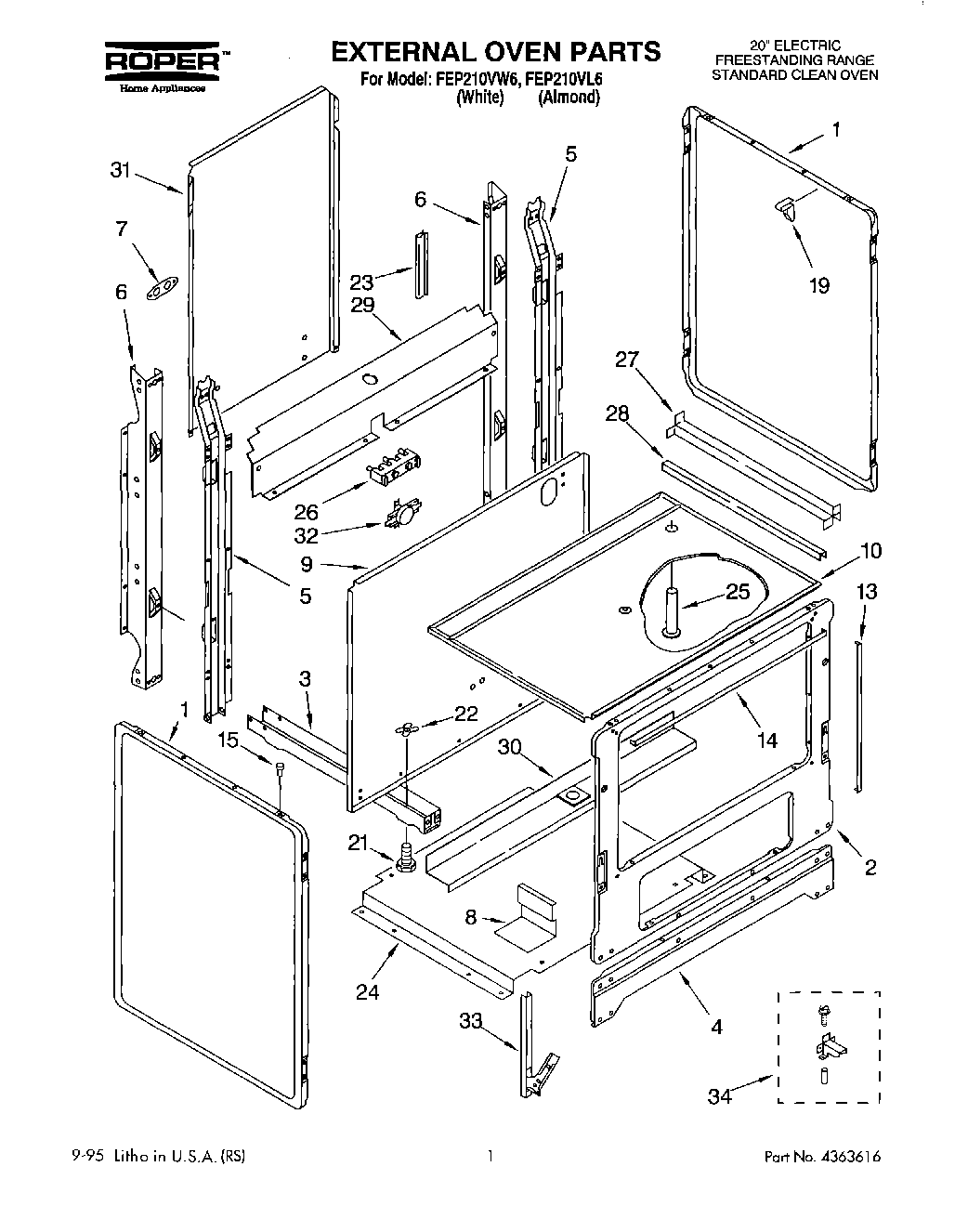

FEP210VL6 01 – EXTERNAL OVEN, LIT/OPTIONALadmin2025-04-26T11:37:01+00:00FEP210VL6 01 – EXTERNAL OVEN, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Wiring Diagram |
| Installation Instructions |
| Guide, Use & Care |
| 1 | Panel, Side (2) (Almond) |
| 1 | Panel, Side (2) (White) |
| 2 | Frame, Front |
| 3 | Rail, Base (2) |
| 4 | Base, Front |
| 5 | Screw, 10-32 X 1/2 (1) |
| 5 | Support, Main (2) |
| 6 | Screw |
| 6 | Support, Rear (2) |
| 7 | Mounting Plate |
| 8 | Shield, Insulation |
| 9 | Panel, Rear |
| 10 | Screw |
| 10 | Burner Box |
| 13 | Seal, Door (2) (Side) |
| 14 | Seal, Door (Top) |
| 15 | Bumper, Cooktop (2) |
| 19 | Clip, Wire |
| 21 | Leg, Leveler |
| 22 | Nut (4) |
| 23 | Safe Edge |
| 24 | Panel, Bottom |
| 25 | Tube, Vent |
| 26 | WP8203546 Whirlpool Terminal Block |
| 27 | Channel, Wire |
| 28 | Ignitor (L.H.) |
| 29 | Cover, Wire |
| 30 | Support |
| 31 | Cover, Rear (Includes Counterweight) |
| 32 | Disc, Thermo |
| 33 | Hinge, Door |
| 33 | WP308685 Whirlpool Microwave Screw |
| 34 | Harness, Wiring (Surface) |
| 34 | WPW10208653 Whirlpool Insulation |
| 34 | Anti-Tip Kit |
| 34 | Harness, Wiring (Main) |
