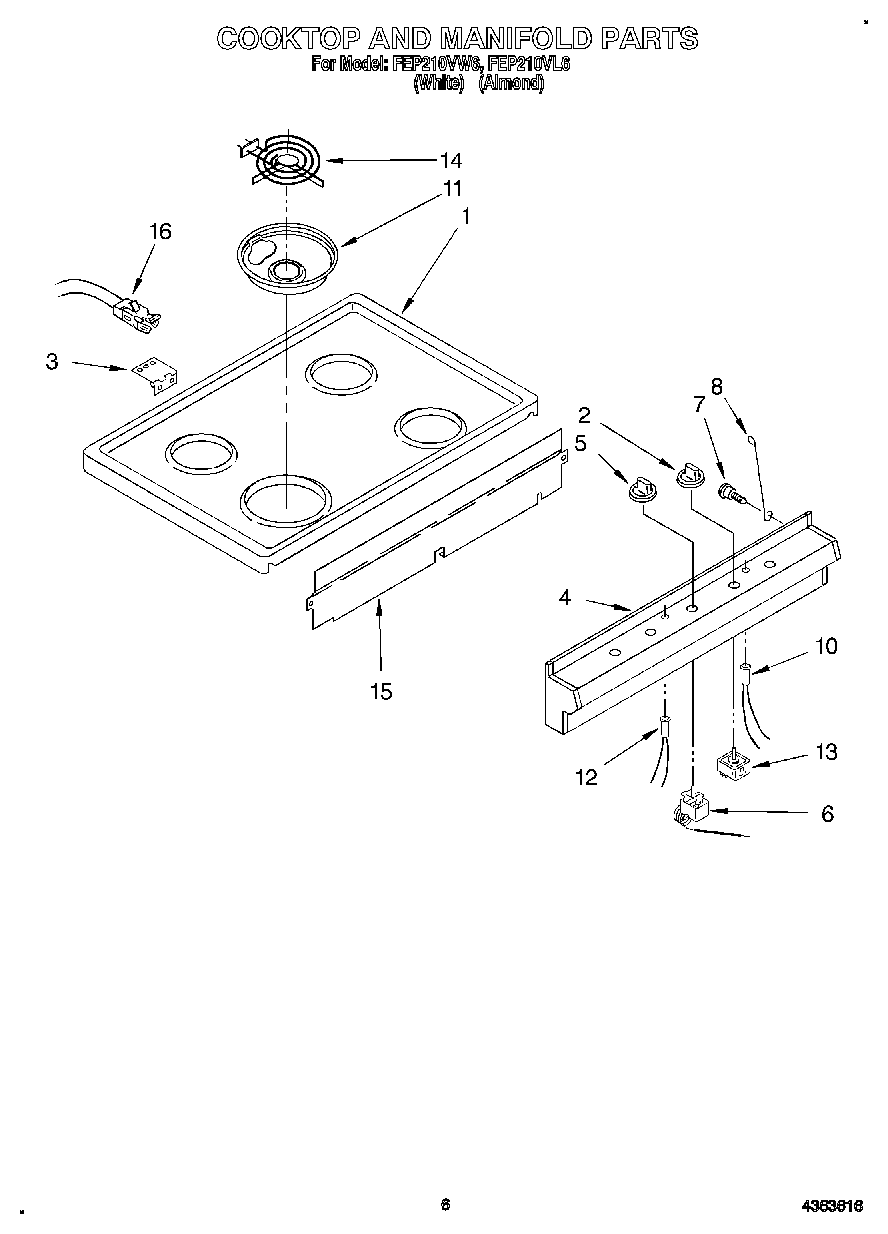

FEP210VL6 05 – COOKTOP AND MANIFOLD

FEP210VL6 05 – COOKTOP AND MANIFOLD

Written by

in

FEP210VL6 05 – COOKTOP AND MANIFOLD

Products

PositionProduct
1Cooktop (White)
1Cooktop (Almond)
2Knob, Burner (4)
3WP308685 Whirlpool Microwave Screw
3Speed Clip (4)
3SCREW
3Hinge, Maintop (2)
4Panel, Manifold
5Knob, Thermostat
6Thermostat
7Screw
8Rod, Support
10Light, Indicator (Oven)
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12Light, Indicator (Surface Unit)
13Screw, Thermostat Mounting (2)
13W10900107 Whirlpool Oven Surface Element Switch
14Element, Surface (6“ (3))
14Element, Surface (8“ (1))
15Cover, Switch
16BURNER RECEPTACLE KIT
