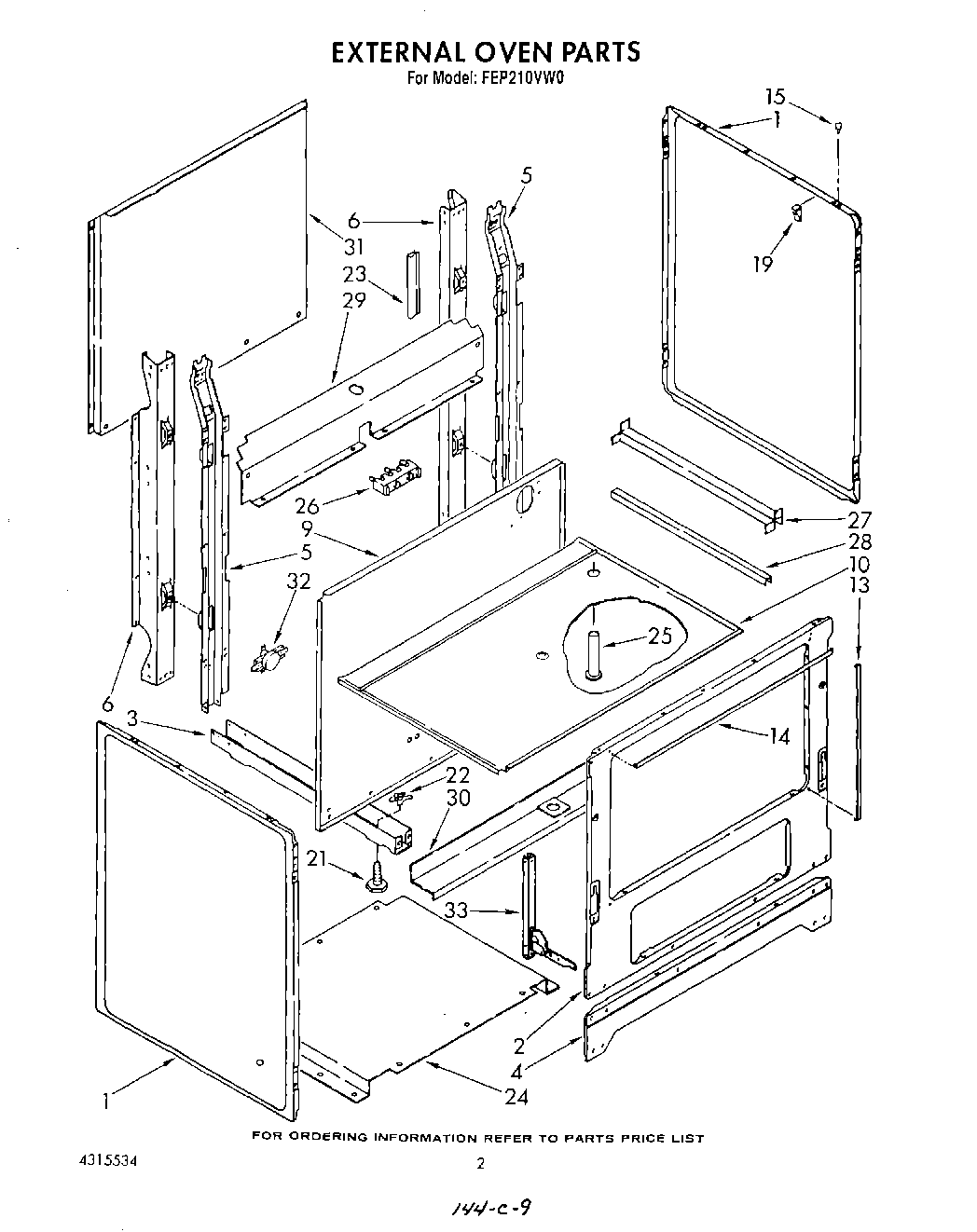

FEP210VW0 02 – EXTERNAL OVEN , LITERATURE AND OPTIONAL

Products

Position	Product
	List, Repair Parts
	Guide, Cooking
	Installation Instructions
	Guide, Use & Care
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Screw, 10-12 X 1/2 (4)
4	Base, Front
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
6	SCREW
9	Panel, Rear
10	Panel, Rear
10	WP308685 Whirlpool Microwave Screw
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
19	Clip, Wire
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
24	Panel, Bottom
25	Tube, Vent
26	WP8203546 Whirlpool Terminal Block
27	Ignitor (R.H.)
28	Ignitor (L.H.)
29	Cover, Wire
30	Support
31	Cover, Rear
32	Disc, Thermo
33	Hinge, Door
33	FOIL, ALUMINUM OVEN (18“ X 25 )
33	WPW10208653 Whirlpool Insulation
