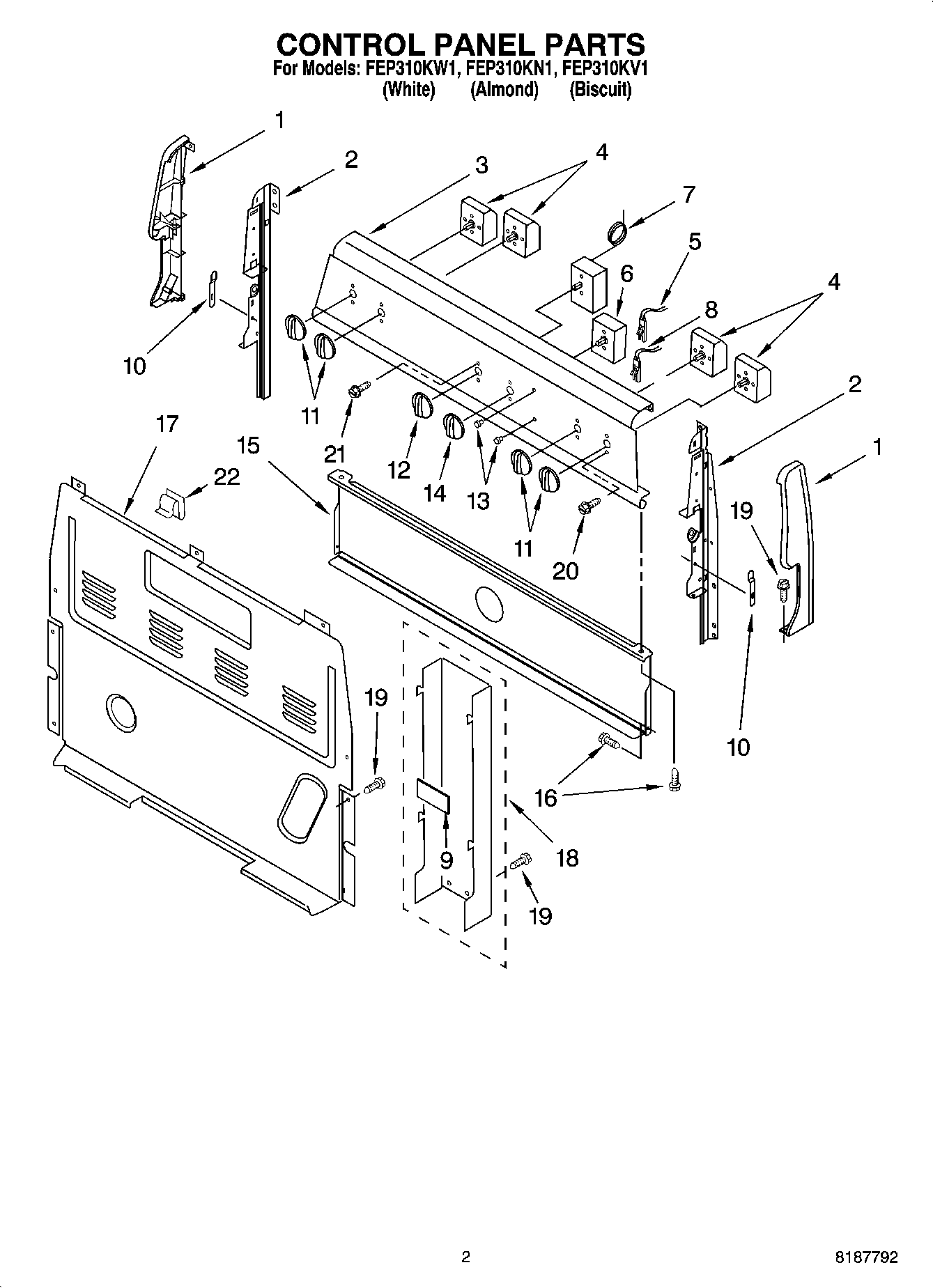

FEP310KW1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (Right Hand)
1	Endcap (Left Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Console
4	SWITCH-INF
4	WP3149404 Whirlpool Oven Surface Element Switch
5	Indicator, Surface
6	WP3188987 Whirlpool Oven Switch
7	WP9762852 Whirlpool Thermostat
8	Light, Indicator (250V)
9	Card, Insulation
10	3196200 Whirlpool Clip
11	WP3196027 Whirlpool Knob
12	WP3196048 Whirlpool Knob
13	WP3196068 Whirlpool Light Lens
14	Knob, Selector
15	Shield, Heat
16	Screw
17	WP8272473 Whirlpool Rear Cover
18	WPW10326122 Whirlpool Black Cover
19	SCREW
20	WP3400882 Whirlpool Screw
21	WP3196170 Whirlpool Screw
22	WP8273564 Whirlpool Clip
