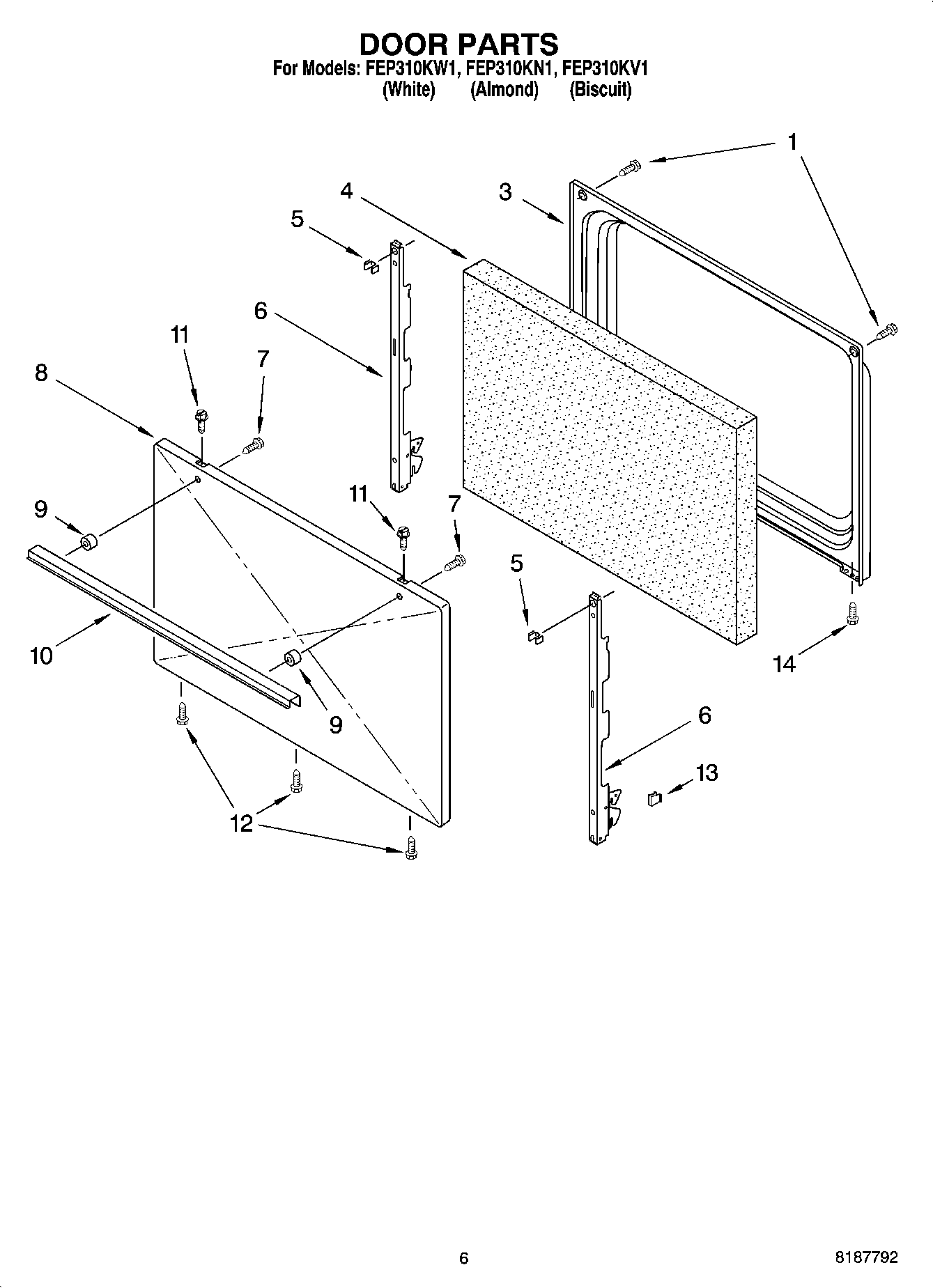

FEP310KW1 05 – DOOR PARTS, MISCELLANEOUS PARTS

FEP310KW1 05 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

FEP310KW1 05 – DOOR PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI57252A2
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Grease
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
WP3196154 Whirlpool Screw Assembly
WPL ARI57251A3
WPL ARI57250A9
WPL ARI57249A8
WPL ARI57248A6
WPL ARI57247A4
WPL ARI57246A4
WPL 9757473
WPL ARI57253A9
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL 8316781
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Clip, Ground Wire
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
4392899 Whirlpool Biscuit Touch-Up Paint
WPL 799832
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
3400964 Whirlpool Oven Clip
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
350956 Whirlpool Spray Assembly
1Screw
3Liner, Door
4WPW10278991 Whirlpool Insulation
5Bracket, Saddle (2)
6Hinge, Door (2)
7WP3196163 Whirlpool Screw
8Panel, Steel (Biscuit)
8W10903447 Whirlpool Door Panel Assembly
8Panel, Door (Almond)
9WP3196143 Whirlpool Spacer Assembly
9Spacer, Handle (2) (Almond)
9Spacer, Handle (Biscuit)
10WP3195704 Whirlpool Door Handle Assembly
113196558 Whirlpool Oven Screw
11Screw, Panel (2) (Almond)
12W10491985 Whirlpool Screw
13WP3196925 Whirlpool Clip Assembly
14WP3196175 Whirlpool Screw
