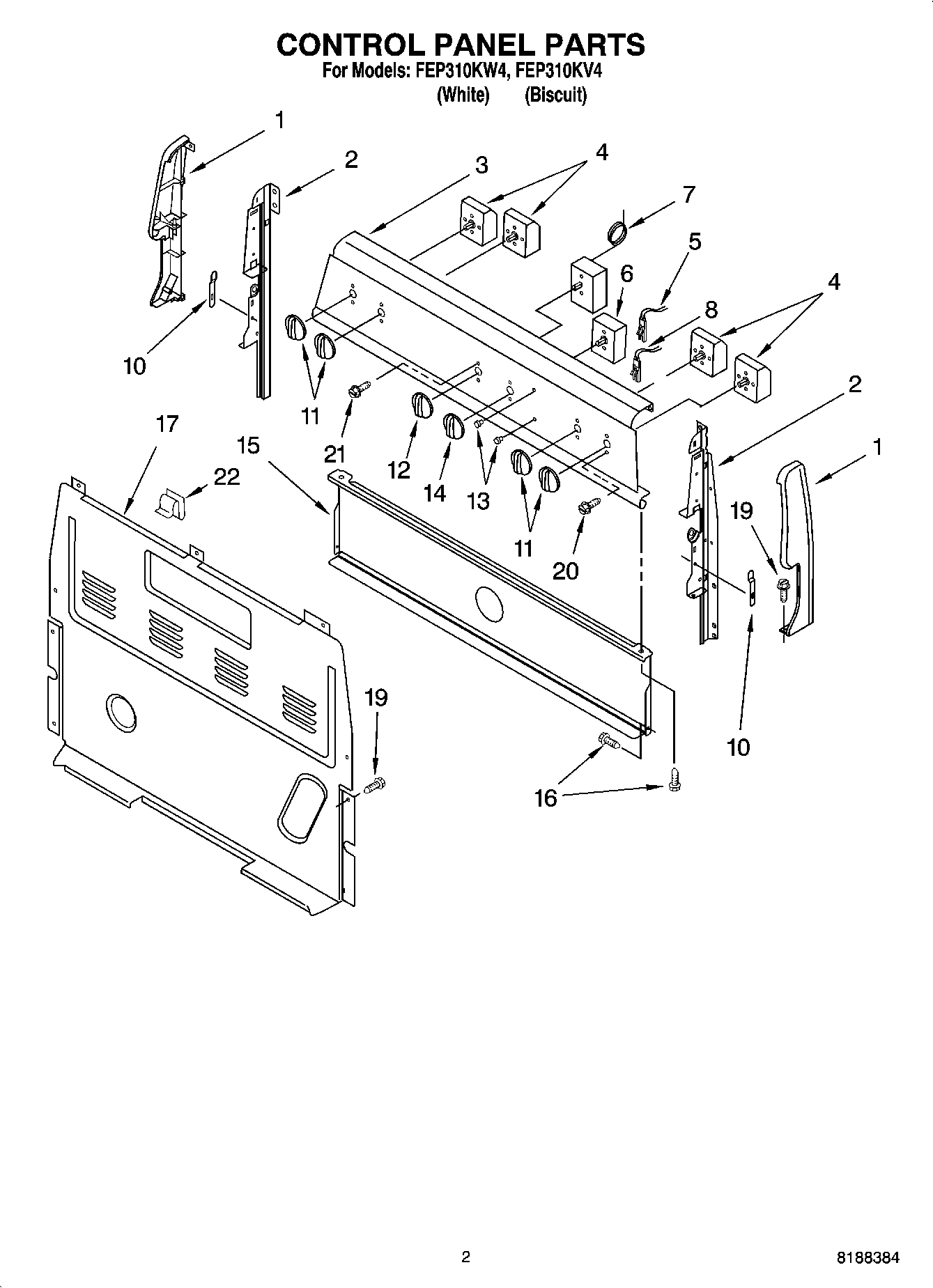

FEP310KW4 02 – CONTROL PANEL PARTS

FEP310KW4 02 – CONTROL PANEL PARTS

Written by

in

FEP310KW4 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Right Hand)
1Endcap (Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Console
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5Indicator, Surface
6WP3188987 Whirlpool Oven Switch
7WP9762852 Whirlpool Thermostat
8Light, Indicator (250V)
103196200 Whirlpool Clip
11WP3196027 Whirlpool Knob
12WP3196048 Whirlpool Knob
13WP3196068 Whirlpool Light Lens
14Knob, Selector
15Shield, Heat
16Screw
17WP8272473 Whirlpool Rear Cover
19SCREW
20WP3400882 Whirlpool Screw
21WP3196170 Whirlpool Screw
22WP8273564 Whirlpool Clip
