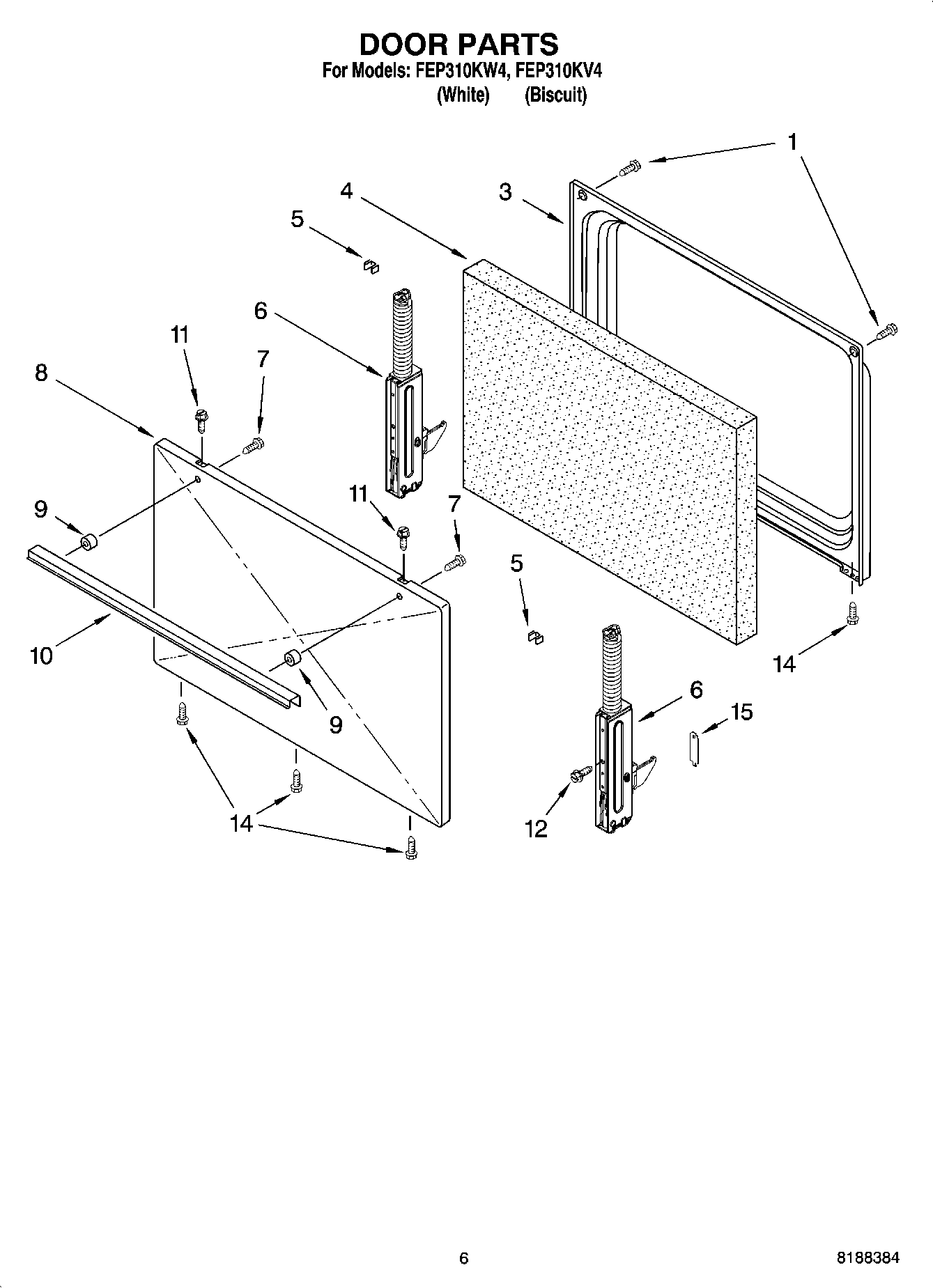

FEP310KW4 05 – DOOR PARTS, OPTIONAL PARTS

FEP310KW4 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

FEP310KW4 05 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI57281A9
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
3184020 Whirlpool Oven Wire
Grease
WP3196154 Whirlpool Screw Assembly
WPL ARI57280A9
WPL ARI57279A2
WPL ARI57278A7
WPL ARI57277A8
WPL ARI57276A8
WPL ARI57275A8
WPL 9757473
WPL ARI57282A8
W11396691 Whirlpool Element Receptacle and Wire Kit
242831 Whirlpool Oven Wire
Clip, Ground Wire
3400964 Whirlpool Oven Clip
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
Almond (Uncut)
4392899 Whirlpool Biscuit Touch-Up Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
4396923 Whirlpool Broil Pan Set Gray Porcelain
72017 Whirlpool Appliance Touch-Up Paint White
W11447673 Whirlpool Range Tip Anchor
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
1W10777162 Whirlpool Screw
39761342 Whirlpool Oven Door Liner
4WPW10278991 Whirlpool Insulation
5Bracket, Mntg (2)
6W10368723 Whirlpool Door Hinge
7WP3196163 Whirlpool Screw
8W10903447 Whirlpool Door Panel Assembly
8Panel, Steel (Biscuit)
9Spacer, Handle (Biscuit)
9WP3196143 Whirlpool Spacer Assembly
10WP3195704 Whirlpool Door Handle Assembly
11Screw, Panel (2) (Almond)
113196558 Whirlpool Oven Screw
12WPW10031790 Whirlpool Screw
14WP3196175 Whirlpool Screw
159761517 Whirlpool Oven Clip Assembly
