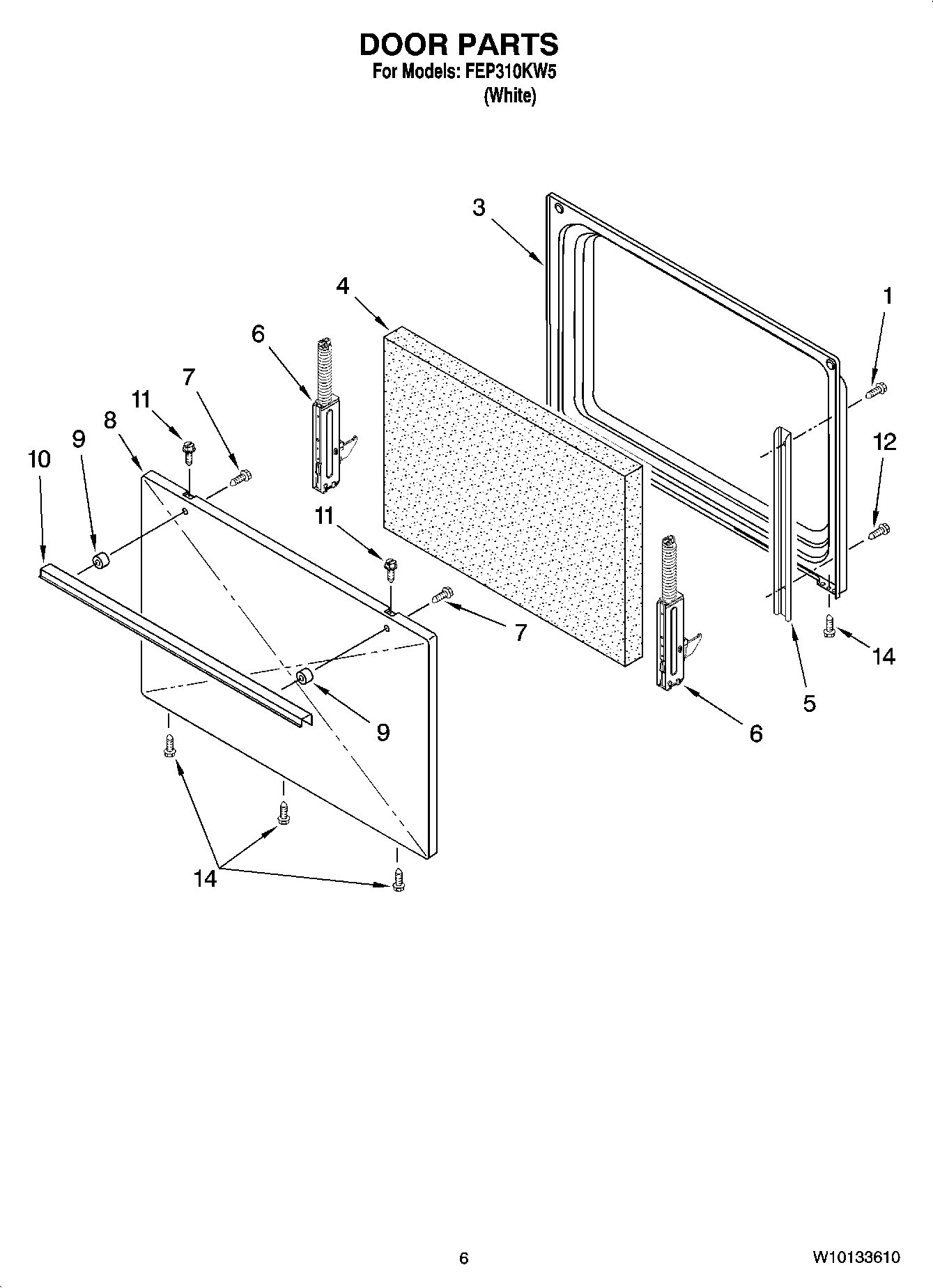

FEP310KW5 05 – DOOR PARTS, OPTIONAL PARTS

FEP310KW5 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

FEP310KW5 05 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI57289A3
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
3184020 Whirlpool Oven Wire
Grease
WPL ARI57288A5
WPL ARI57287A4
WPL ARI57286A1
WPL ARI57285A1
WPL ARI57284A4
WPL 9757473
WPL ARI57290A9
W11396691 Whirlpool Element Receptacle and Wire Kit
WP3196154 Whirlpool Screw Assembly
242831 Whirlpool Oven Wire
Clip, Ground Wire
3400964 Whirlpool Oven Clip
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
350942 Whirlpool Spray Paint
W11447673 Whirlpool Range Tip Anchor
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
4396923 Whirlpool Broil Pan Set Gray Porcelain
72017 Whirlpool Appliance Touch-Up Paint White
1W10777162 Whirlpool Screw
39761342 Whirlpool Oven Door Liner
4WPW10278991 Whirlpool Insulation
5Bracket, Mntg (2)
6W10368723 Whirlpool Door Hinge
7WP3196163 Whirlpool Screw
8W10903447 Whirlpool Door Panel Assembly
9WP3196143 Whirlpool Spacer Assembly
10WP3195704 Whirlpool Door Handle Assembly
113196558 Whirlpool Oven Screw
12WPW10031790 Whirlpool Screw
14WP3196175 Whirlpool Screw
