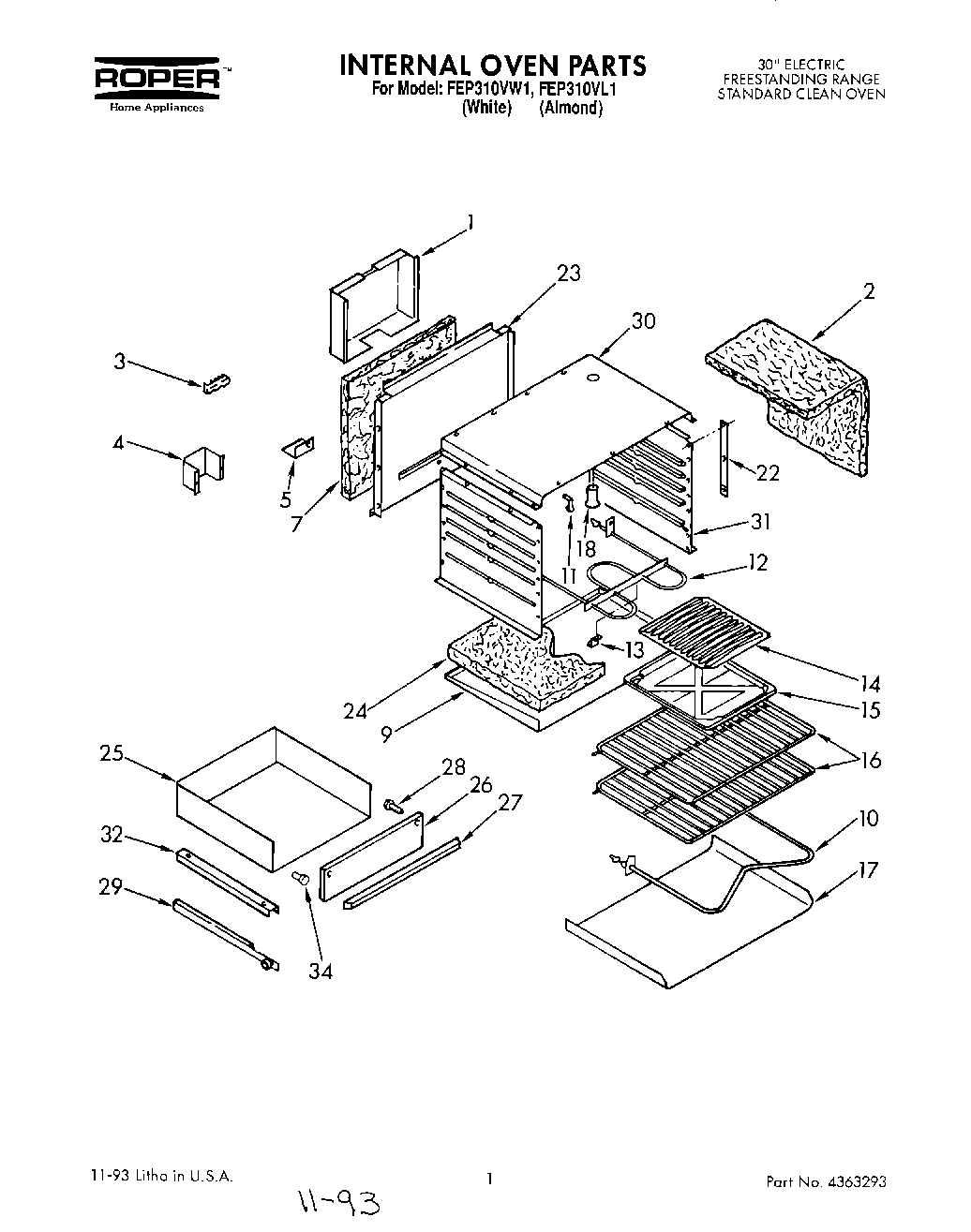

FEP310VL1 01 – INTERNAL OVEN

Products

Position	Product
1	Wire Shield
2	Insulation
3	WP8203546 Whirlpool Terminal Block
4	Shield, Wire
5	Mounting Plate
9	Retainer Lower
10	WP4314958 Whirlpool Bake Element
11	98005642 Whirlpool Clip
13	Support, Element
14	Grid
15	4396923 Whirlpool Broil Pan Set Gray Porcelain
16	Rack, Oven (2)
17	Bottom, Oven
18	Tube, Vent
22	Support, Liner (2)
23	Backliner, Oven
24	WPW10208653 Whirlpool Insulation
25	Drawer, Storage
26	Drawer, Front (Almond)
26	Drawer, Front (White)
27	Handle, Door (2)
28	Screw
29	Track, Broiler (Right Hand)
29	Track, Broiler (Left Hand)
30	WP308685 Whirlpool Microwave Screw
30	Oven, Top
31	Liner, Oven Side (2)
31	Screw
31	Screw, No.10 x 1/2 (6)
32	Track, Upper (Left)
32	Track, Upper (Right)
34	Bumper, Rubber (6)
