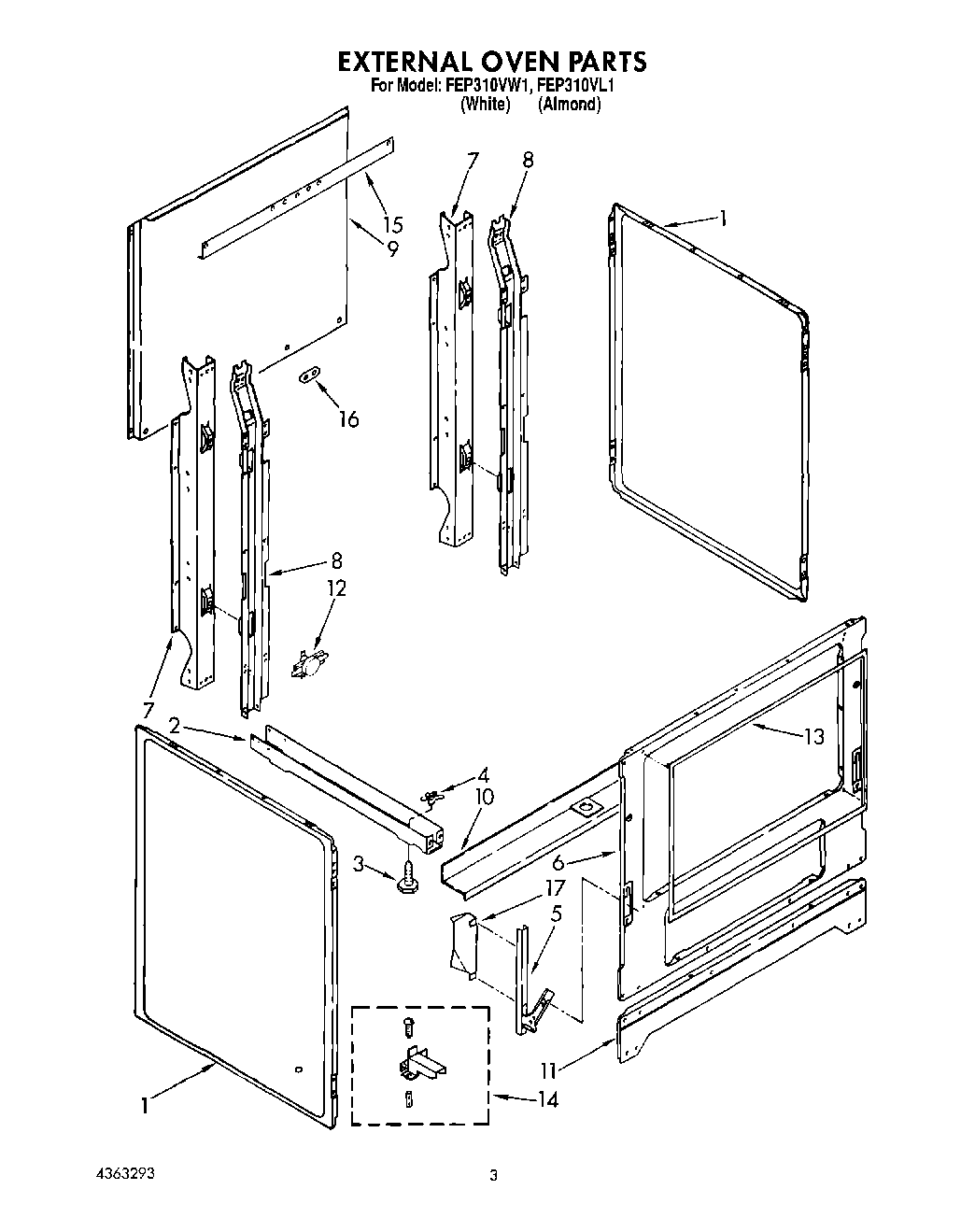

FEP310VL1 02 – EXTERNAL OVENadmin2025-04-26T11:36:27+00:00FEP310VL1 02 – EXTERNAL OVEN
Products
| Position | Product |
|---|
| 1 | Panel, Side (2) (White) |
| 1 | Panel, Side (2) (Almond) |
| 2 | Rail, Base (2) |
| 3 | Leg, Leveler (4) |
| 4 | Nut (4) |
| 5 | Hinge |
| 6 | Main Front |
| 7 | Support, Rear (2) |
| 8 | Support, Main (2) |
| 9 | Panel, Rear |
| 9 | WP308685 Whirlpool Microwave Screw |
| 10 | Support, Oven |
| 11 | Base, Front |
| 12 | Disc, Thermo |
| 13 | Seal, Door (2) |
| 14 | Anti-Tip Kit |
| 15 | Cover, Rear |
| 16 | Mounting Plate |
| 17 | Shield, Insulation |
